The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.

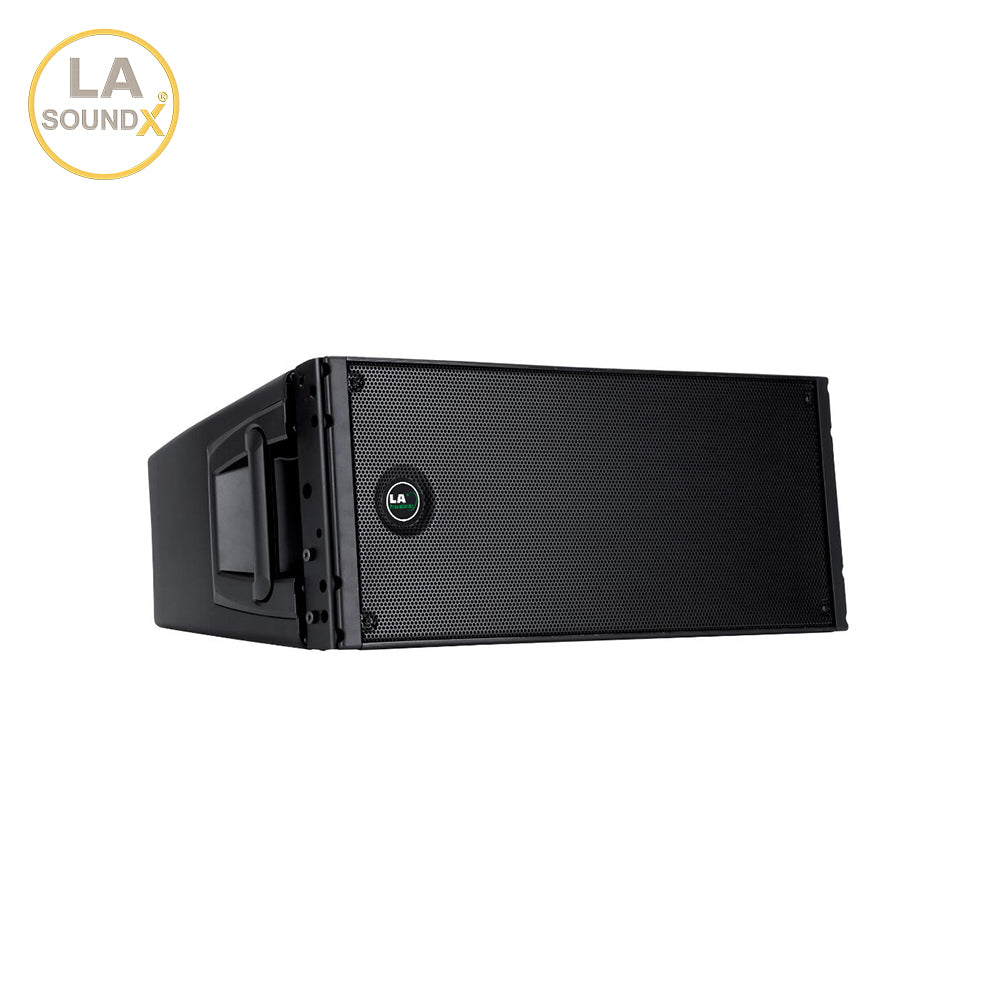

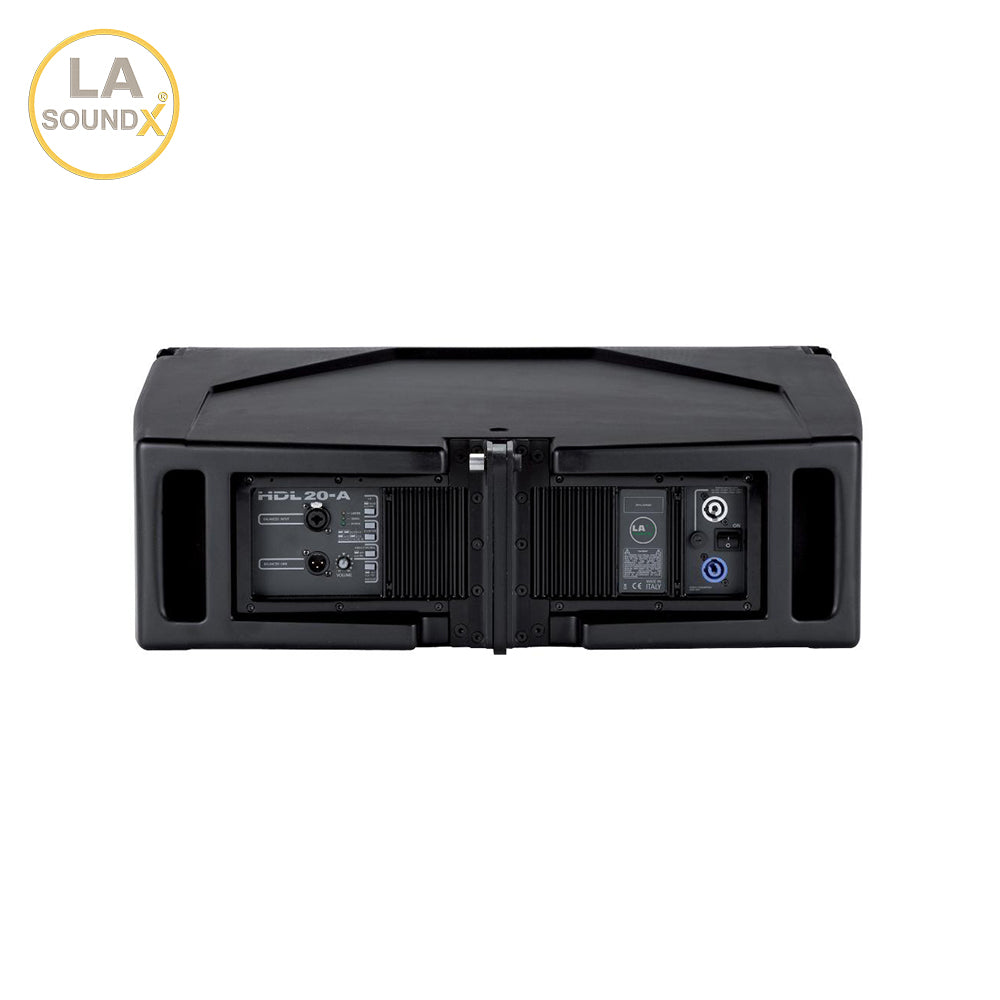

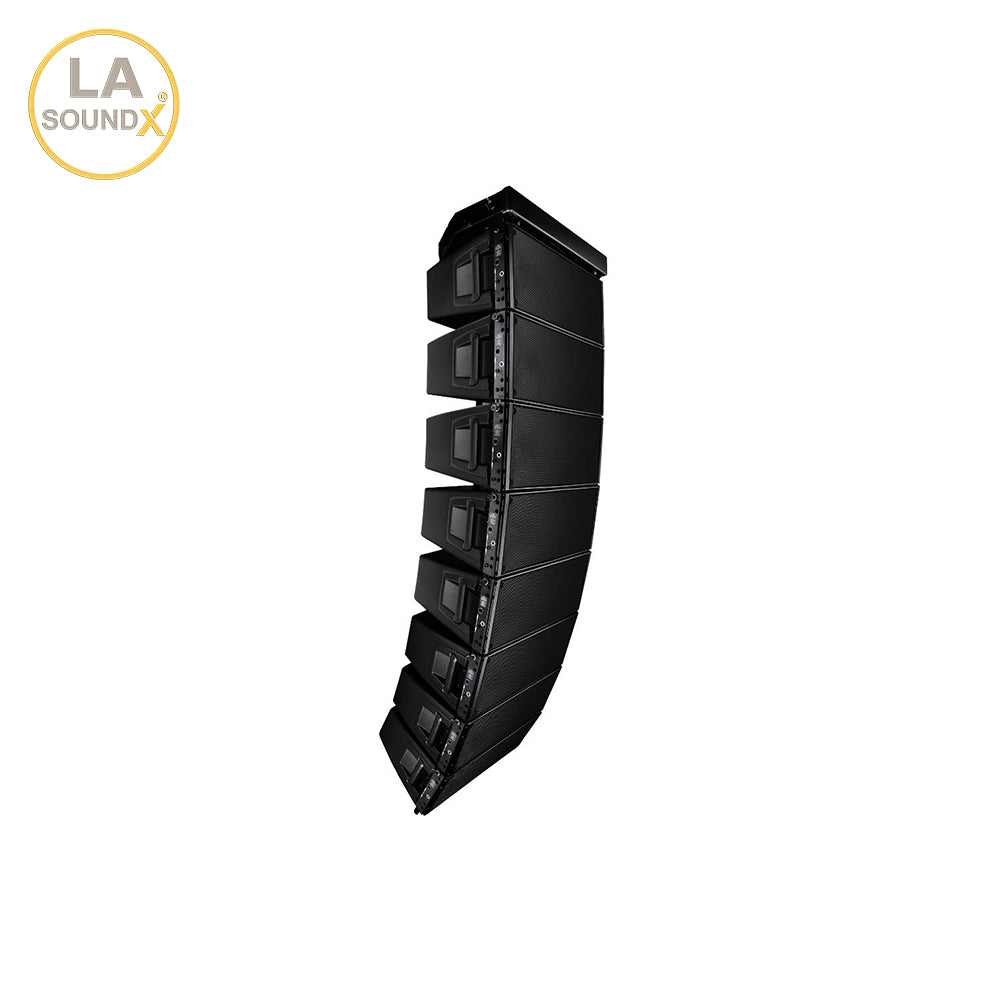

HDL 20-A ACTIVE LINE ARRAY MODULE

Precio de oferta
Agotado

  • 1400 Watt Peak power - 700 Watt RMS
  • 2 x 10" Woofers
  • 55 Hz 20 kHz frequency response
  • DSP controlled Input section with selectable presets

    标题

    Amplifier

    The following specifications of power amplifiers can be used to drive AL90.

    Recommended products

    SPECIFICATIONS

    Frequency Response:55 Hz ÷ 20000 Hz

    Max SPL @ 1m:135 dB

    Horizontal coverage angle:100°

    Vertical coverage angle:15°

    Compression Driver:1 x 2.0'', 3.0'' v.c

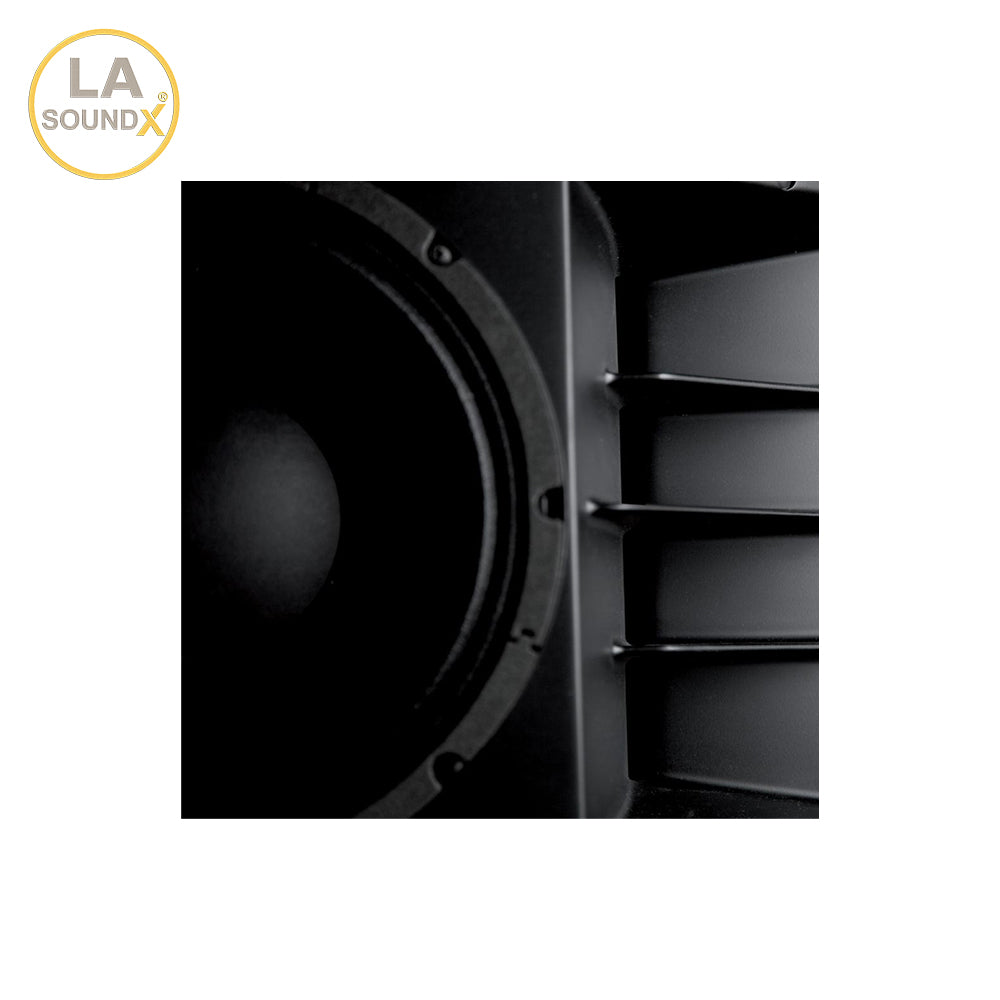

    Woofer:2 x 10'', 2.5'' v.c

    Input signal:bal/unbal

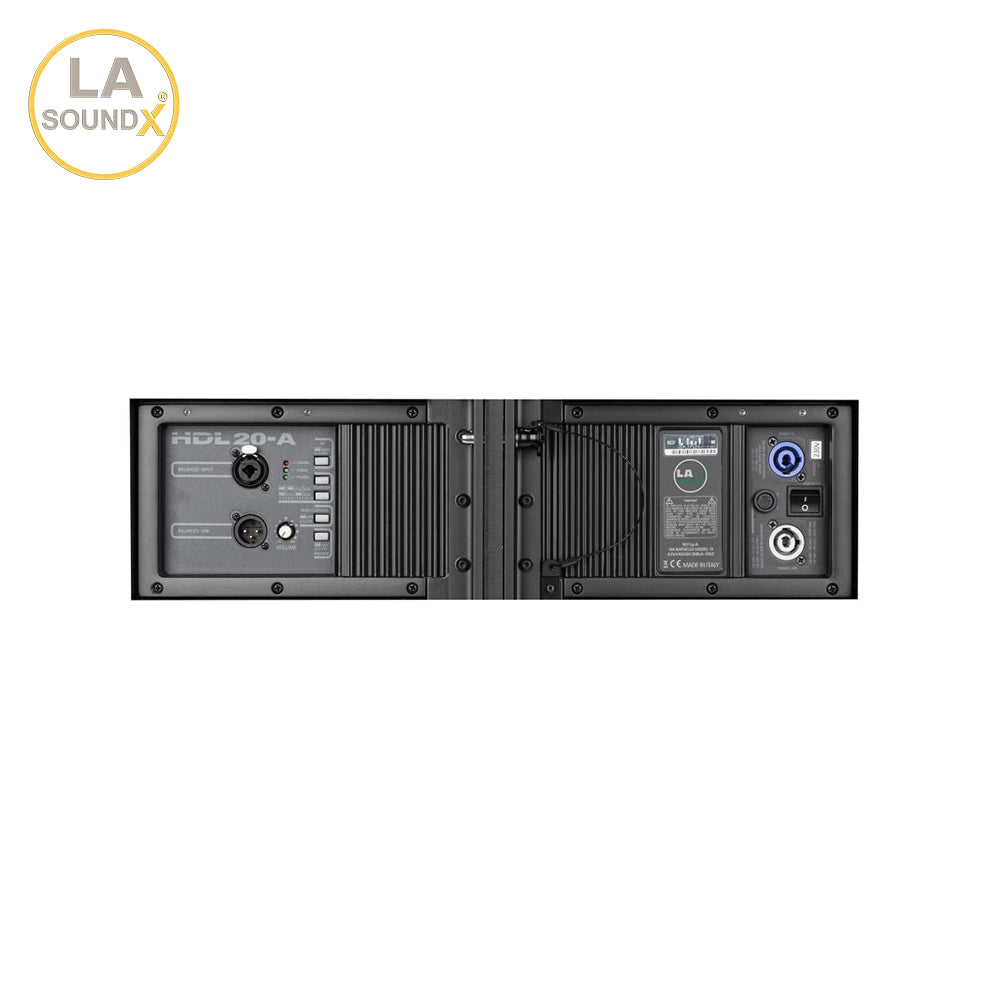

    Input connectors:XLR

    Output connectors:XLR

    Input sensitivity:-2 dBu/+4 dBu

    Crossover Frequencies:800 Hz

    Protections:Thermal, RMS

    Limiter:Soft Limiter

    Controls:Cluster, HF, High curving, Indoor

    Total Power:1400 W Peak, 700 W RMS

    High frequencies:400 W Peak, 200 W RMS

    Low frequencies:1000 W Peak, 500 W RMS

    Cooling:Convection

    Connections:Powercon IN/OUT

    Safety agency:CE compliant

    Cabinet/Case Material:PP Composite

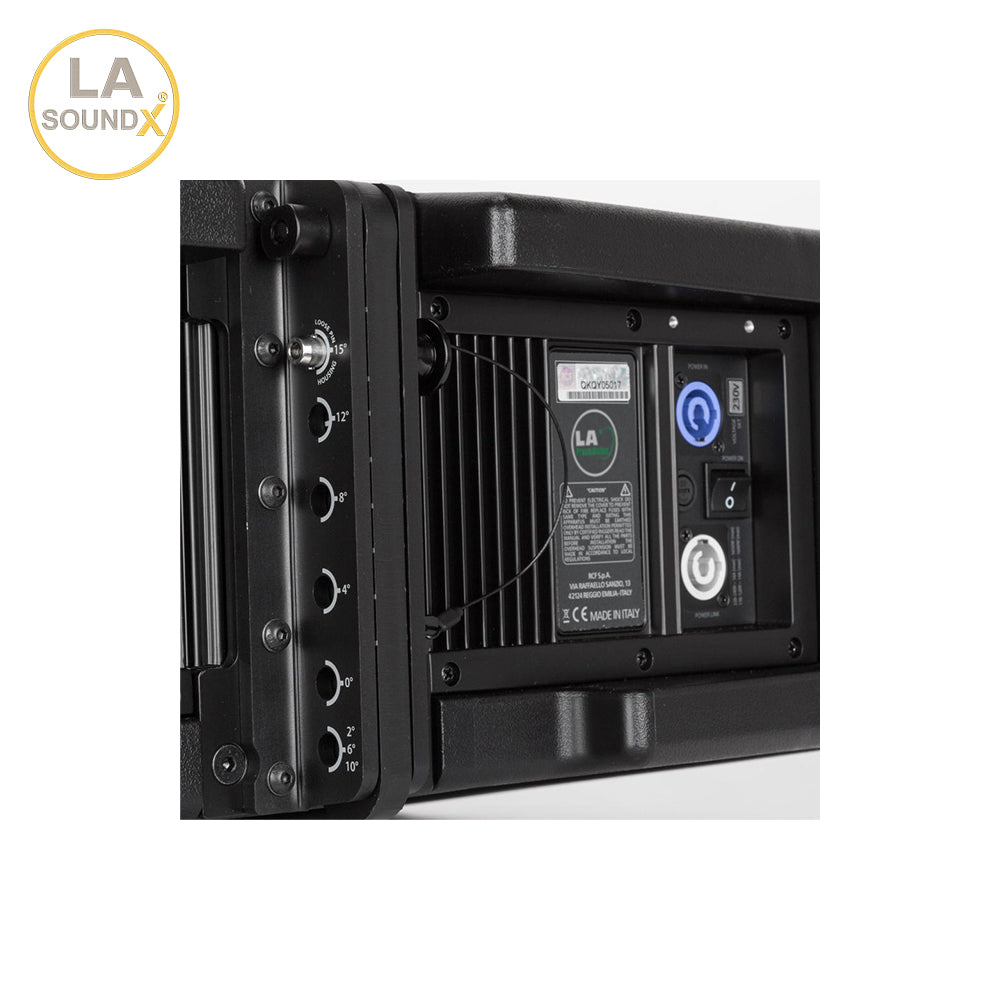

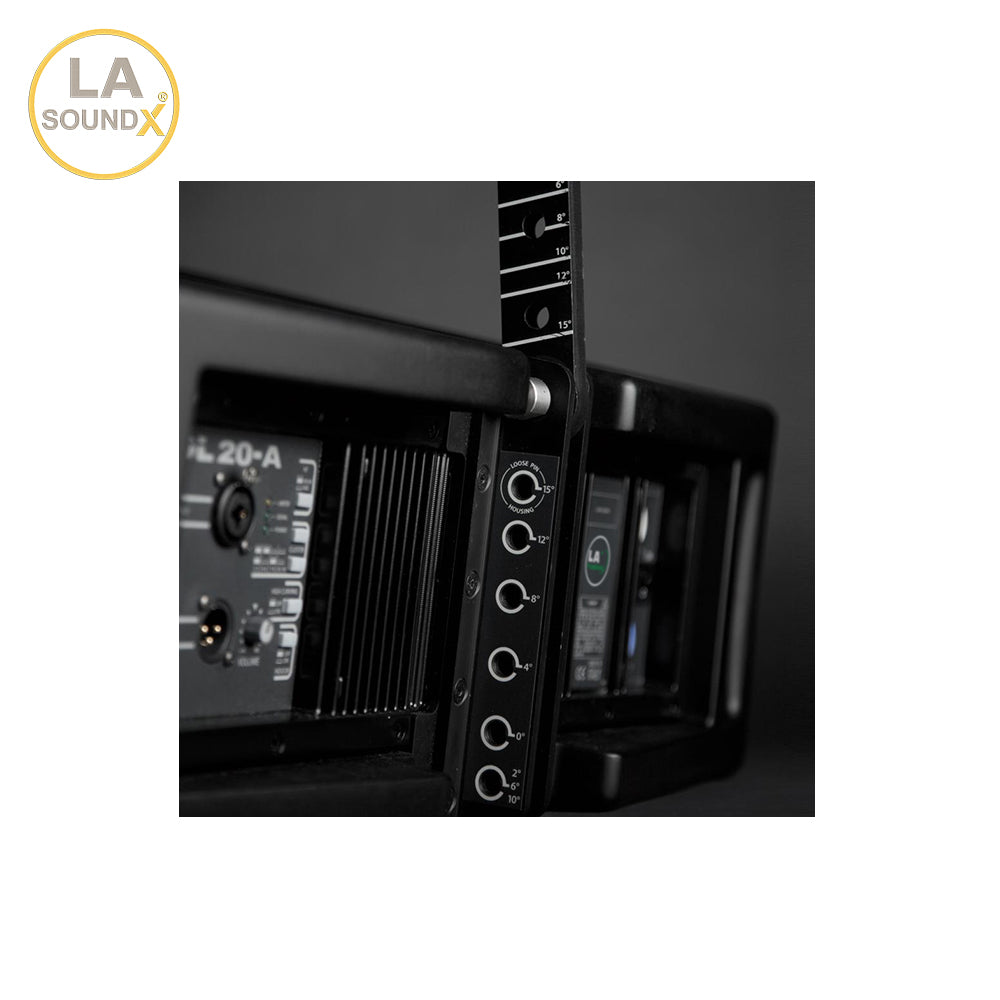

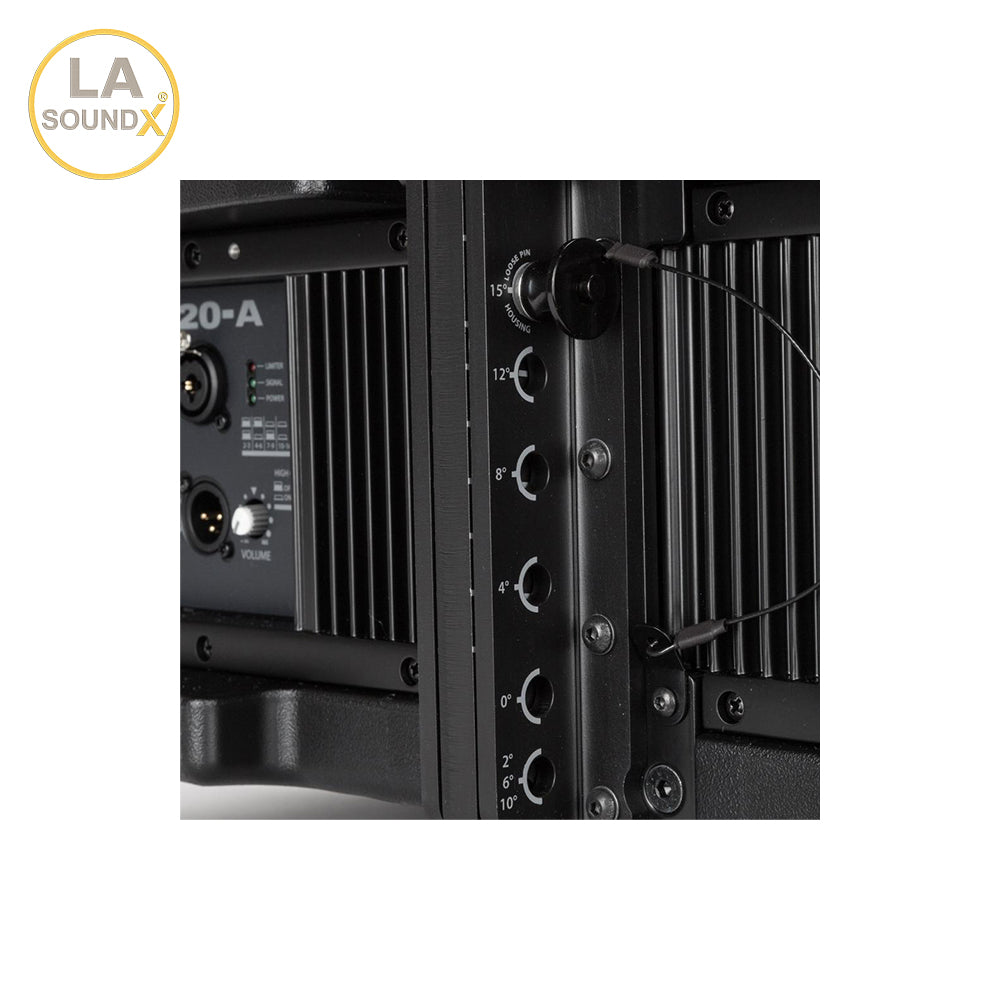

    Hardware:Rigging flyware

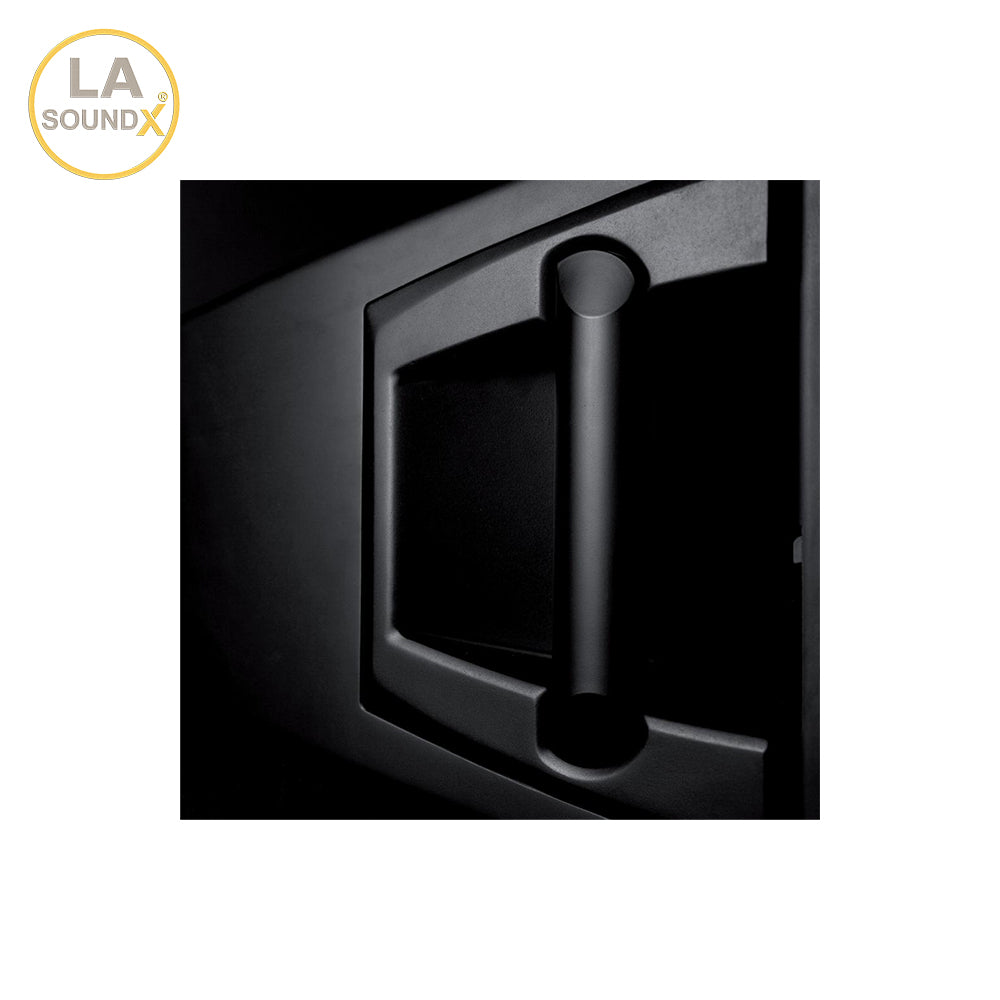

    Handles:2 side, 2 back

    Grille:Steel

    Color:Black

    Height:294 mm / 11.57 inches

    Width:705 mm / 27.76 inches

    Depth:445 mm / 17.52 inches

    Weight:30.2 kg / 66.58 lbs

    Package Height:375 mm / 14.76 inches

    Package Width:800 mm / 31.5 inches

    Package Depth:500 mm / 19.69 inches

    Package Weight:33.2 kg / 73.19 lbs
