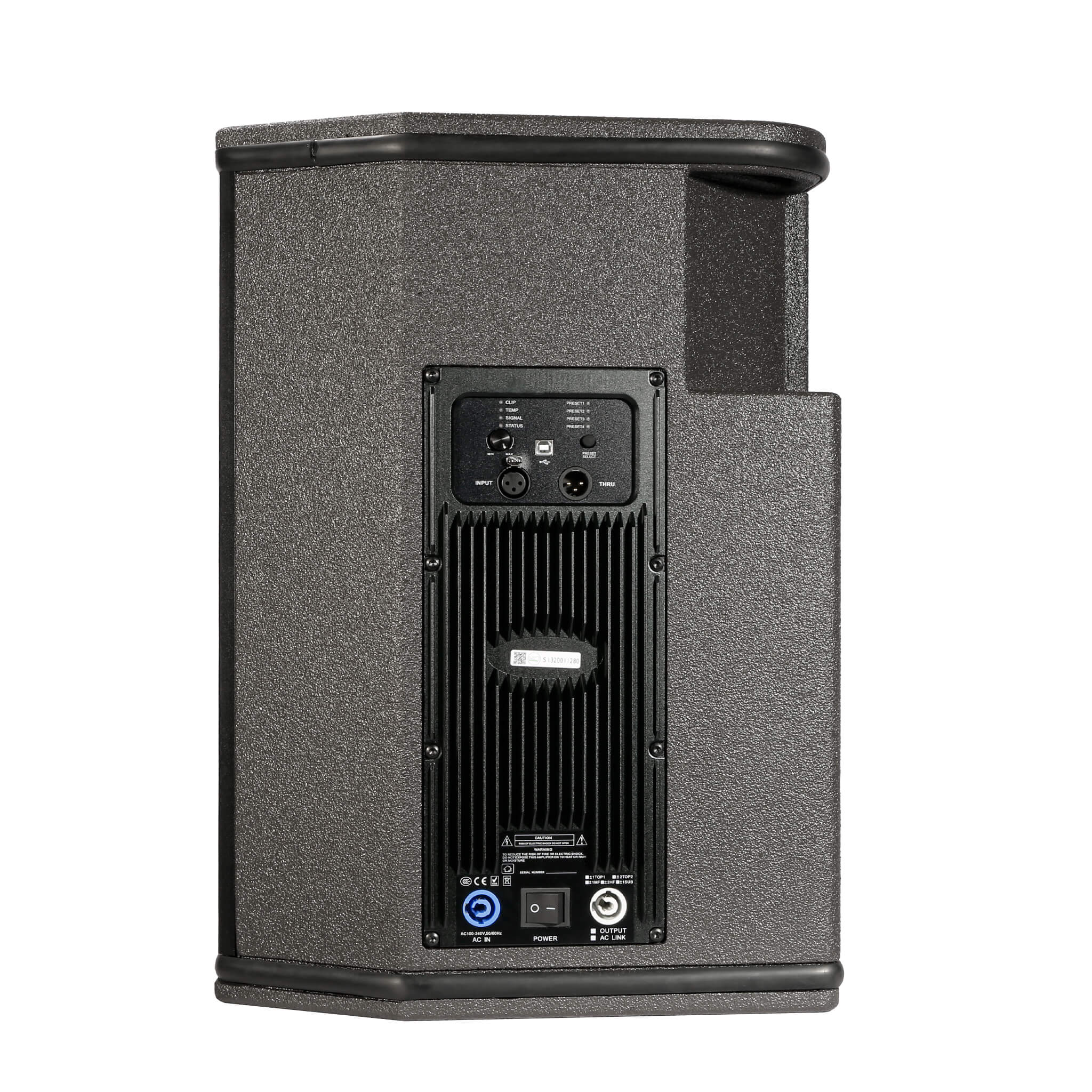

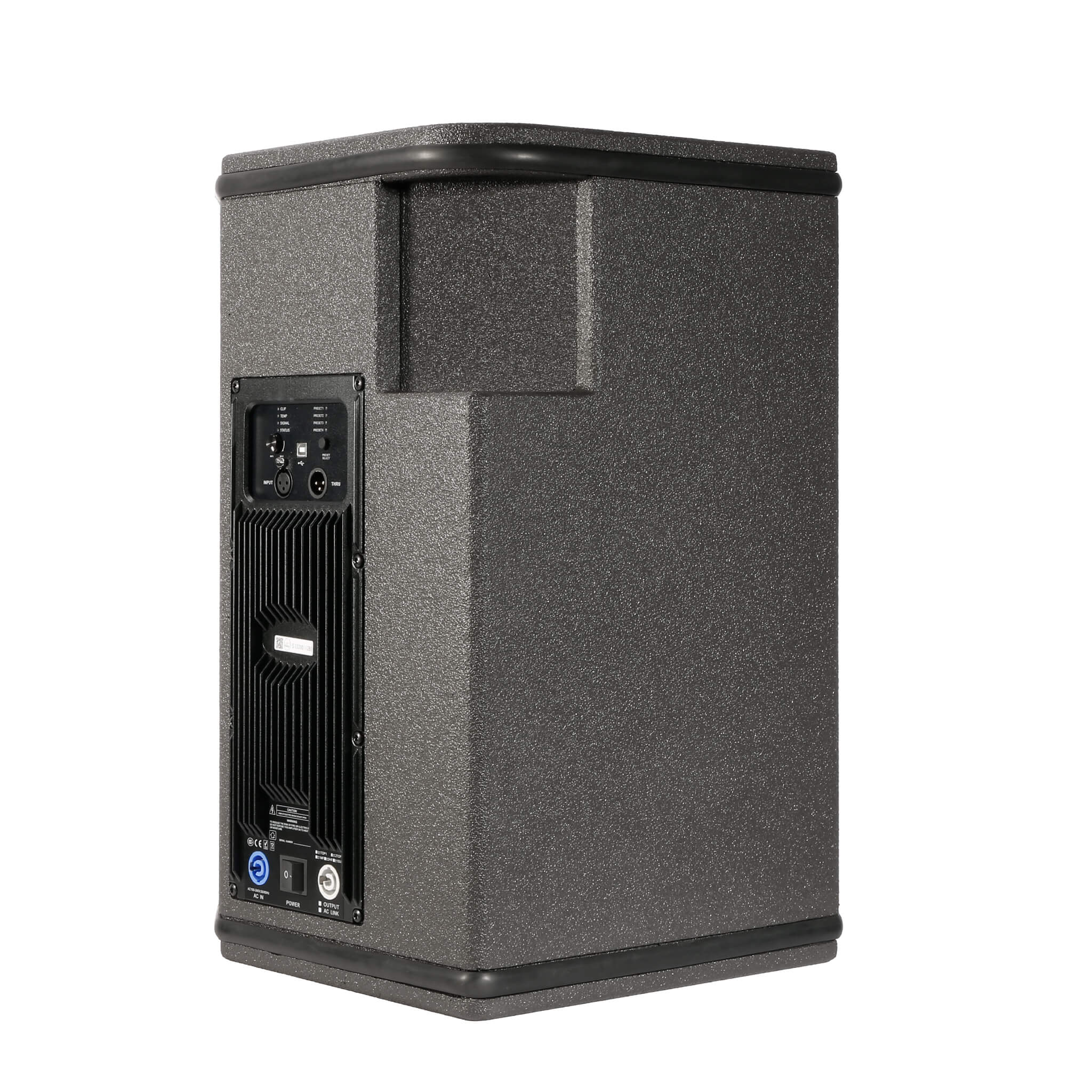

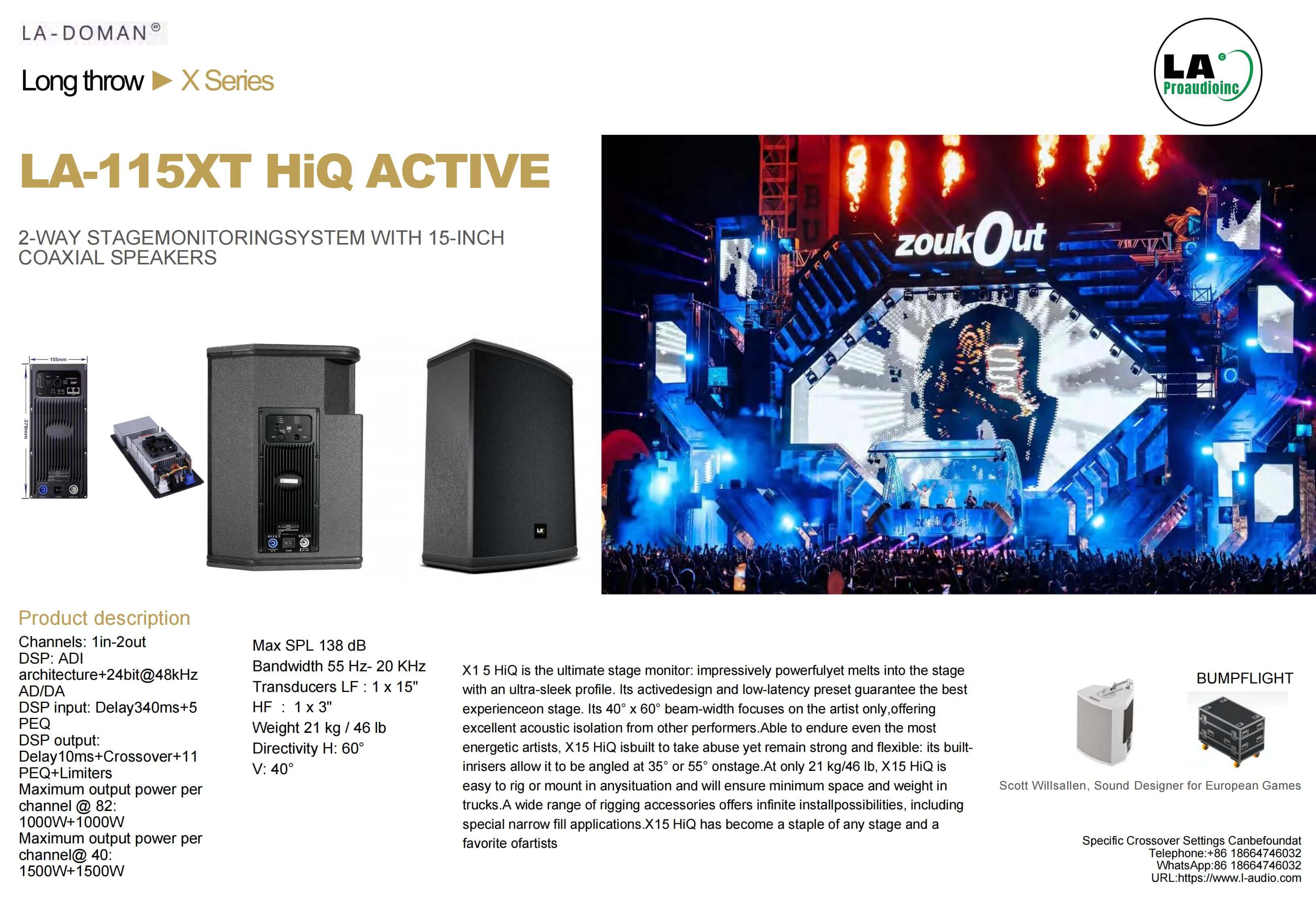

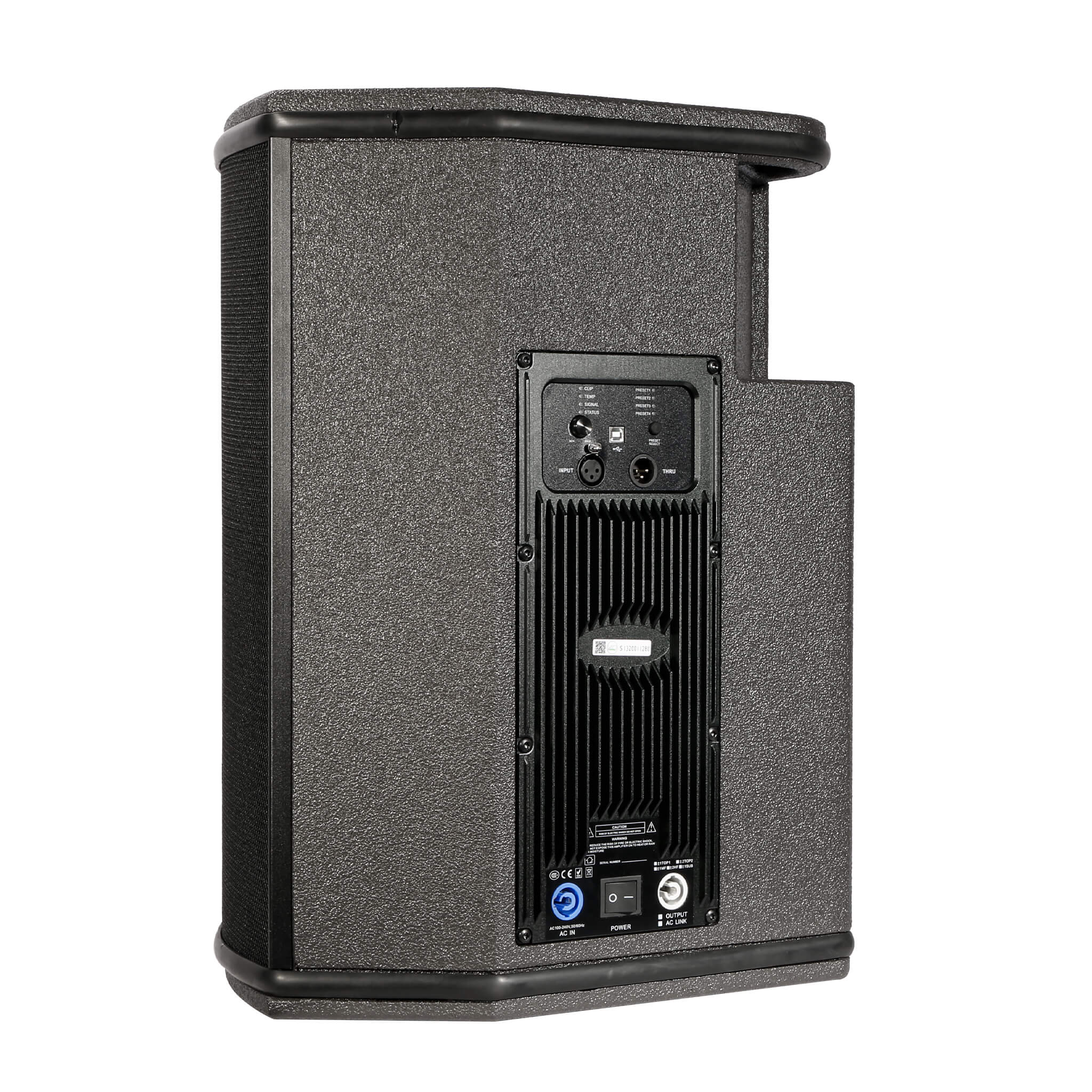

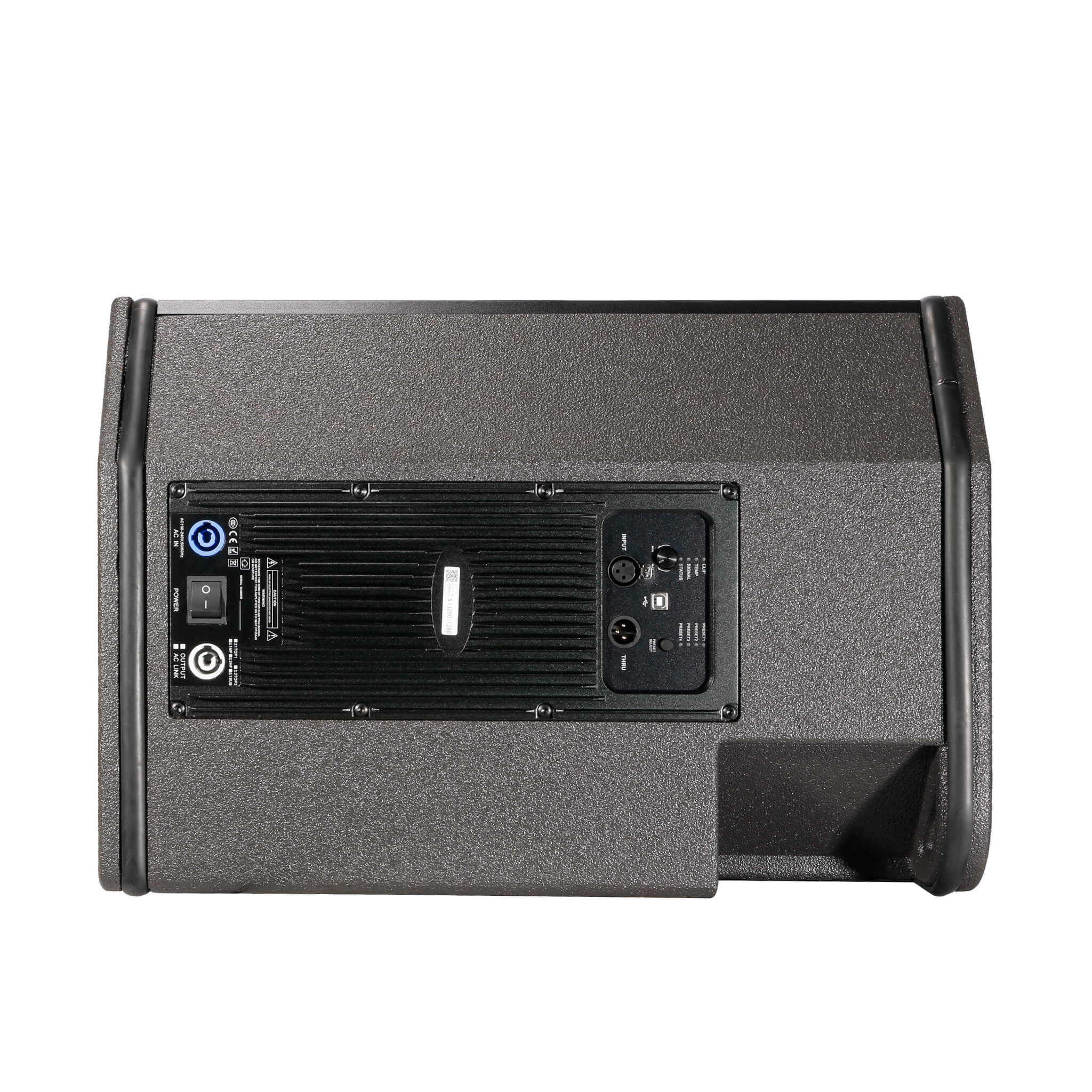

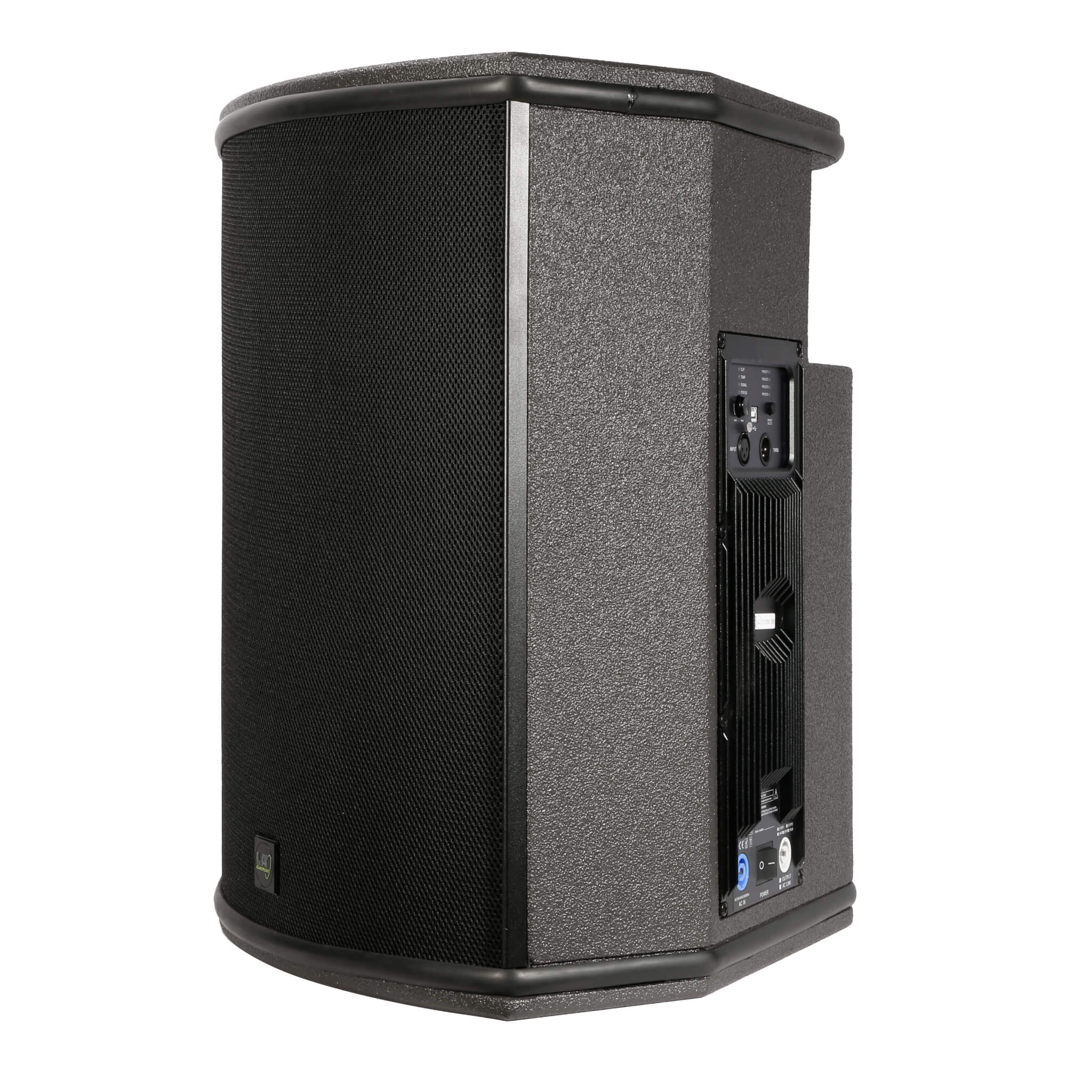

115XT Active Diva of The Stage 2-Way Active, 15"

Power Factor Correction (PFC): Universal operation

worldwide, error-proof connection to mains voltage
(tolerance up to 400VAC)

·Smart Rail Management (SRM): Reduce heat consumption and

improve efficiency

·High performance/low power consumption universal power

supply

·Fixed frequency switching mode output stage for maximum

fidelity

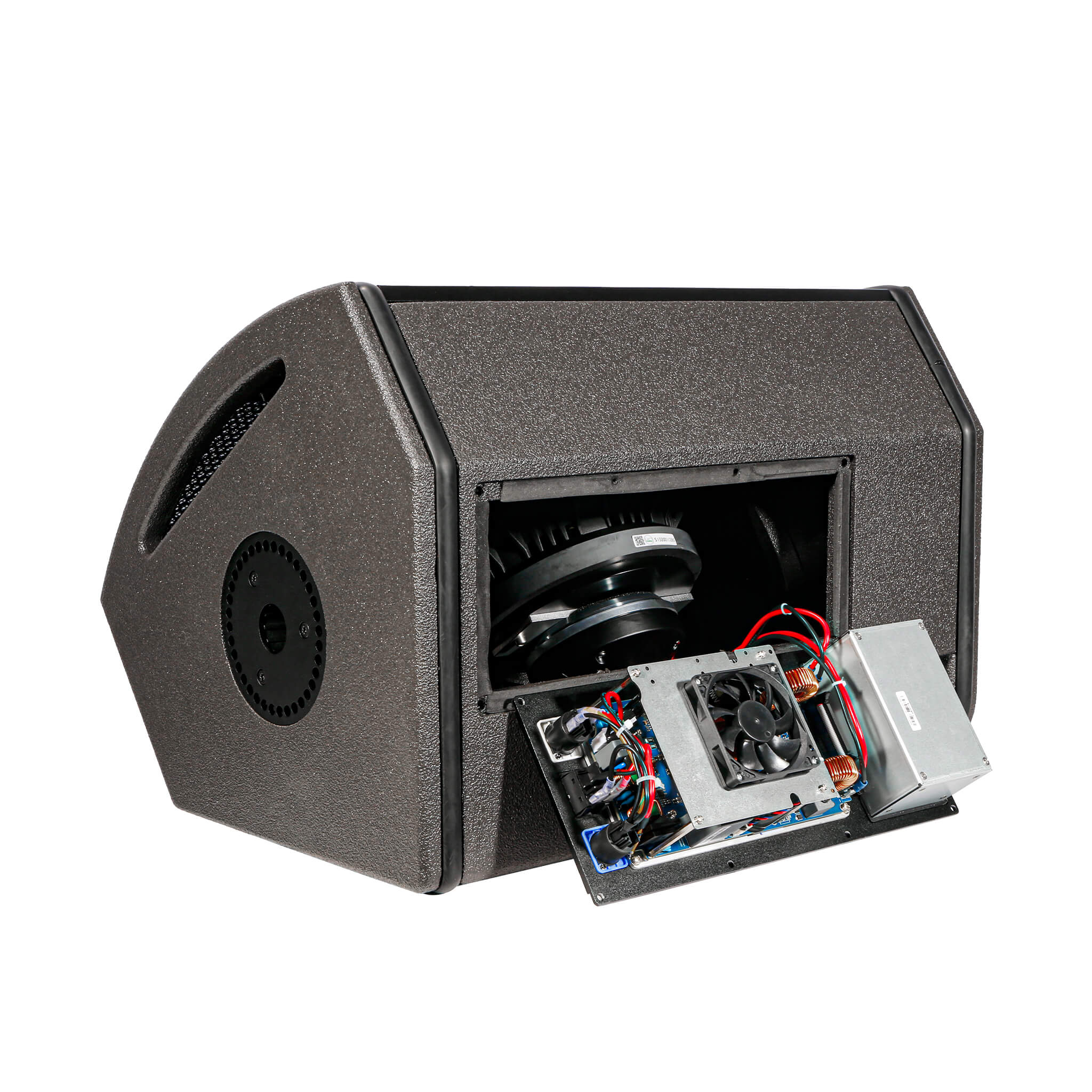

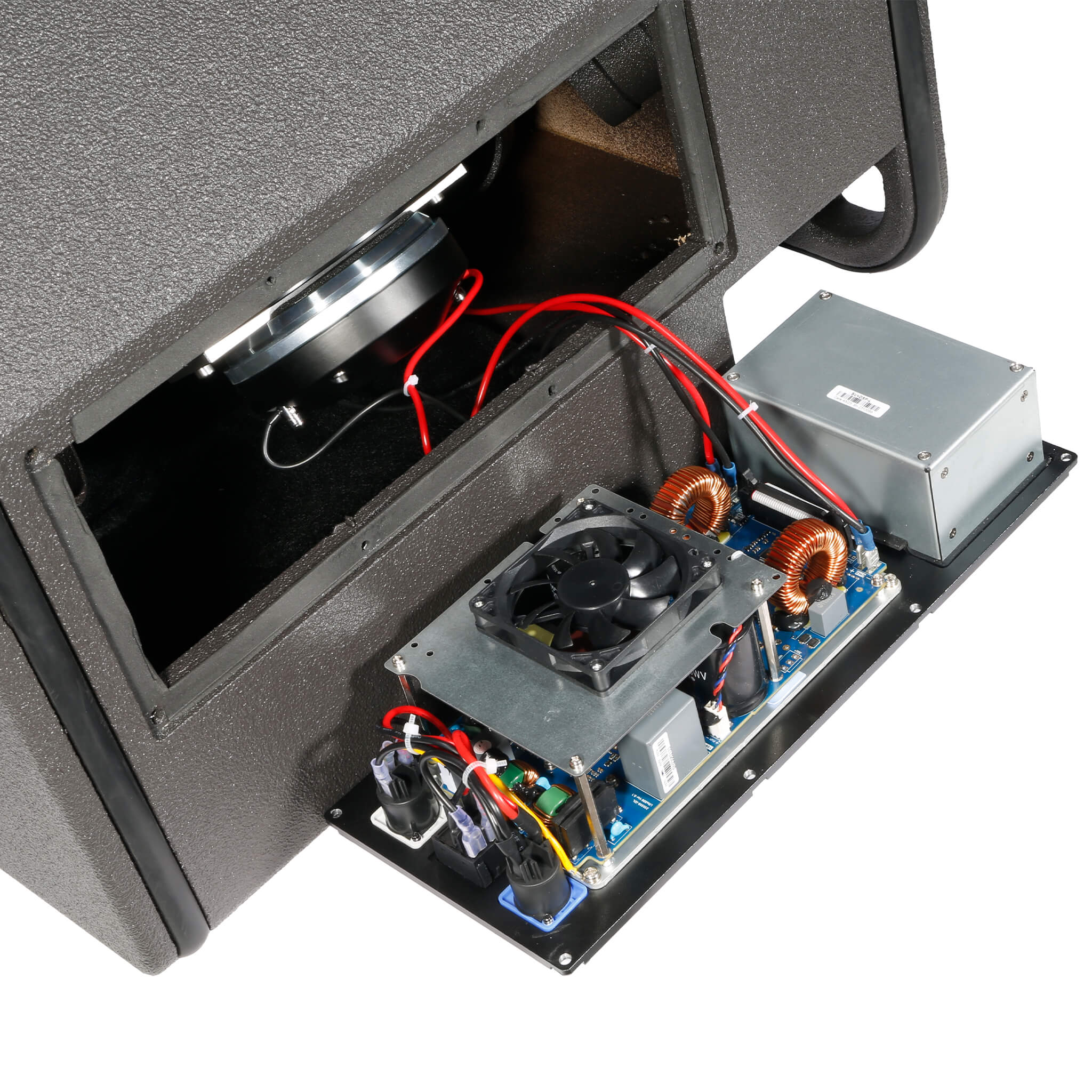

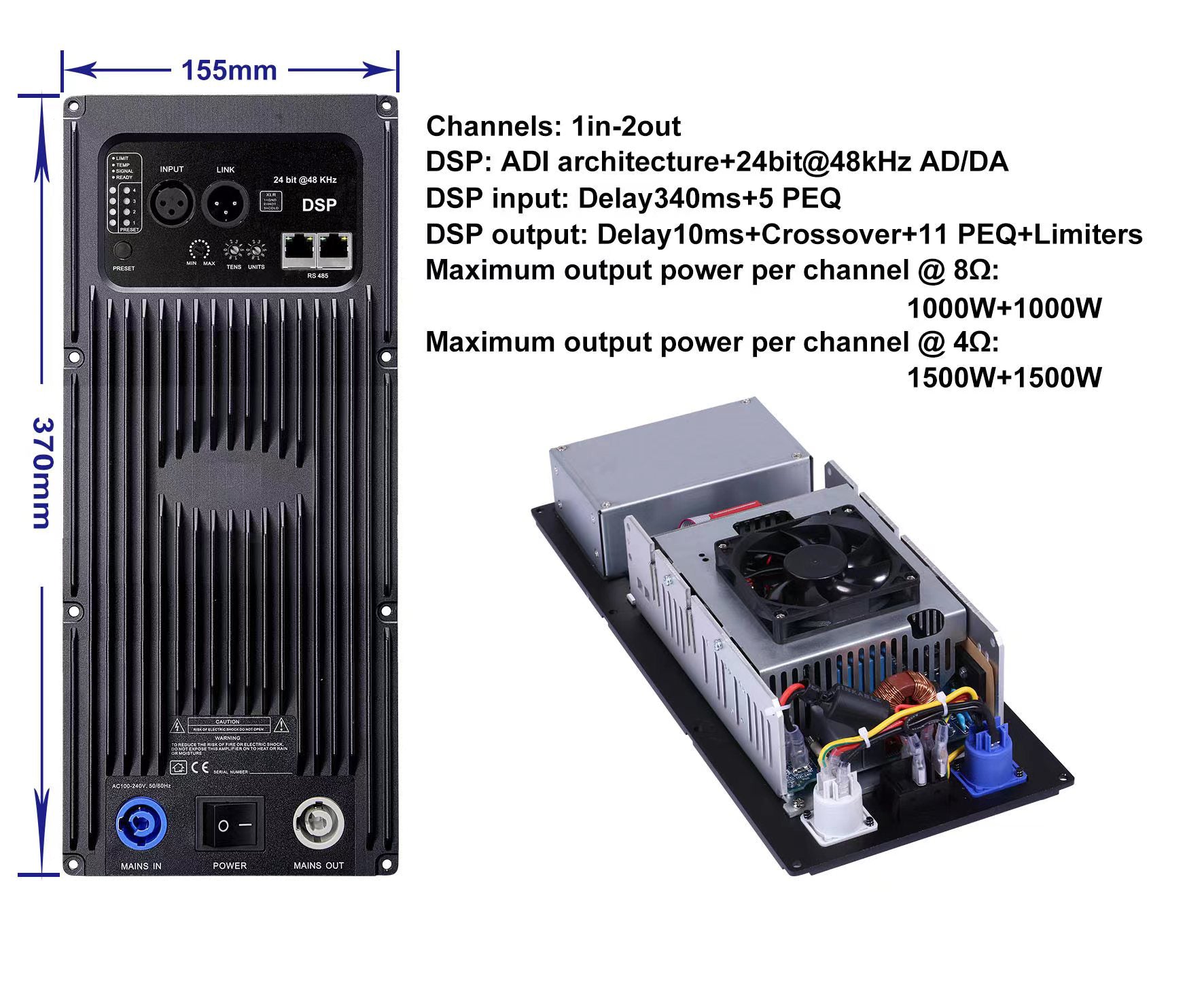

·Optional DSP board and heat sink board

·Comprehensive intelligent protection: overheating (power

limiting - overheating shutdown) short
circuit/overload/clipping limiter/high

frequency protection

·Temperature controlled internal fan and output

·1 input and 2 outputs 24bit@48kHz DSP (optional

configuration: 2 inputs and 2 outputs)

·Input EQ: 5 parametric EQs: Peak, High/Low Shelf, All

Pass, Band Pass, Band Stop, High/Low Pass

· Output equalizer: Parametric IIR filters: Peak, High/Low

Shelf, All Pass, Band Pass, Band Stop, High/Low Pass

·Crossover filters: Butterworth, Linkwitz-Riley, Bessel,

6dB/oct to 48dB/oct

·Limiters: Peak limiter, RMS limiter, frequency offset

limiter, clipping limiter, temperature limiter

·Delay: 340 ms input delay (1in), 10 ms output delay per

channel

Maximum output power (EIAJ test standard): 2*1000W/8Ω,

2*1500W/4Ω; bridged 3000W/8Ω

·Working voltage: AC 100-240V±10%, 50-60Hz

·Gain: 32dB

·Input sensitivity: 2.2V/+9dBu

·Frequency response: 20Hz-20kHz (±0.5dB)@1W, 8Ω

·Signal-to-noise ratio: >115dB (20Hz-20kHz, A weighted)

·Crosstalk isolation: -71dB@1kHz

·THD＋N：<

0.09% from 0.1W to half power (typically <0.05%)

·DIM100: < 0.09% from 0.1W to half power (typically

<0.07%)

·Input impedance: 10kΩ balanced

·Conversion rate: 50V/μs@8Ω, input filter bypassed

·Damping coefficient: >500@100Hz

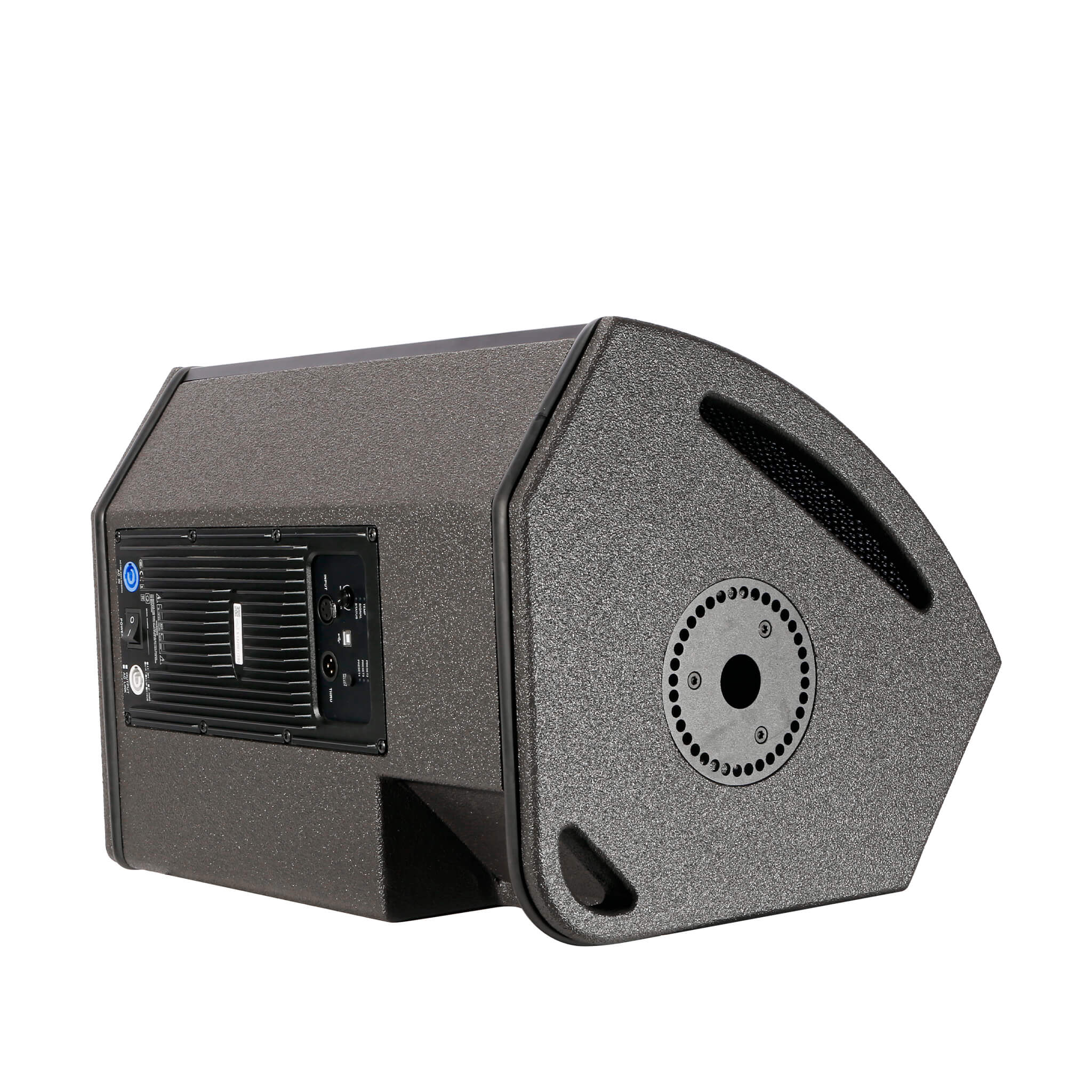

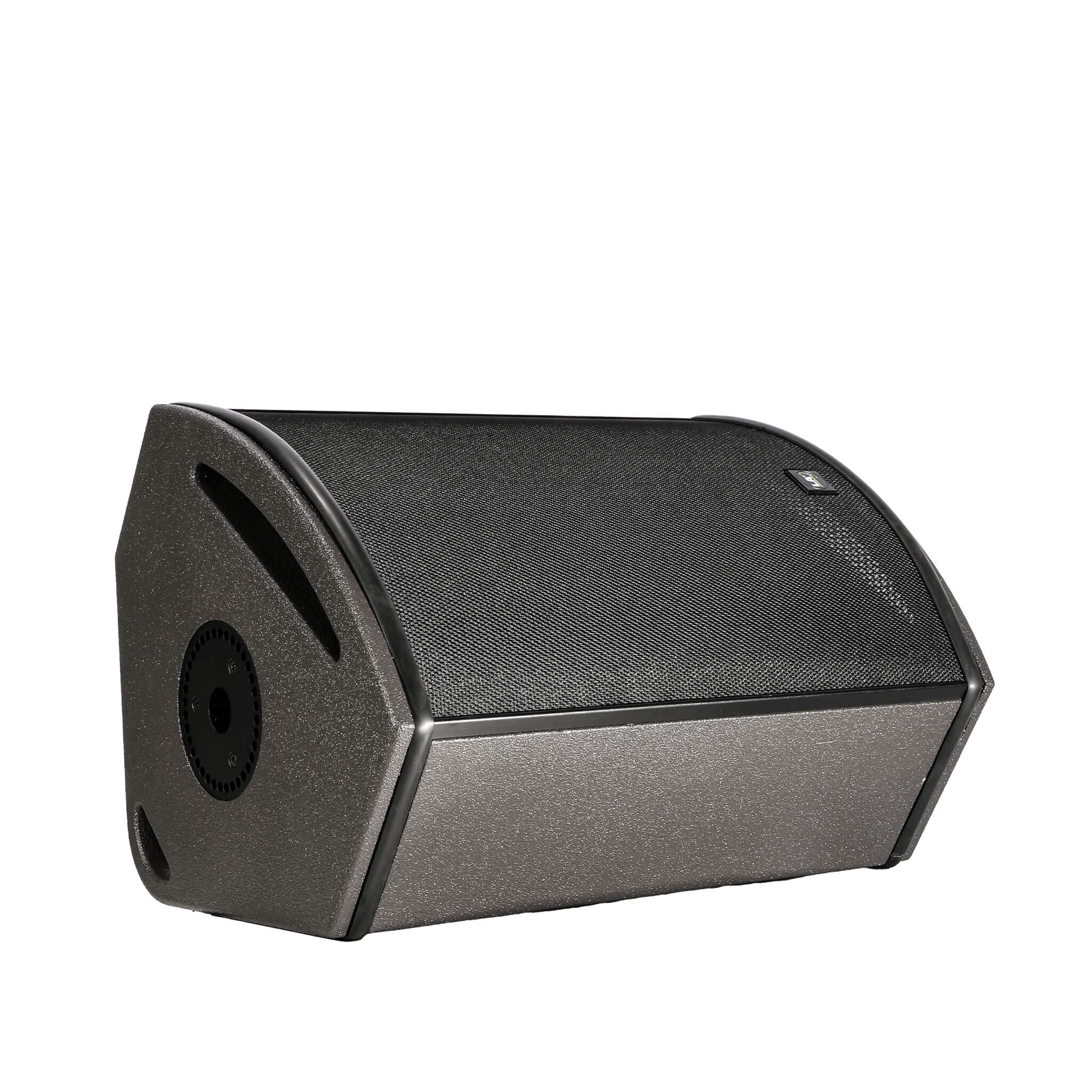

2-way active coaxial enclosure
amplified by LA4X / LA12X

Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([X15])

Maximum SPL1 138 dB ([HQ15])

Nominal directivity (-6 dB) Vertical: 60° symmetric

horizontal: 40° symmetric

Monitor angle Without risers: 35°

with risers: 55°

Transducers LF: 1 × 15″ cone driver

HF: 1 × 3″ diaphragm compression driver, neodymium

Acoustical load Load bass-reflex, L-Vents, ellipsoidal
waveguide

Nominal impedance LF: 8 Ω

HF: 8 Ω
