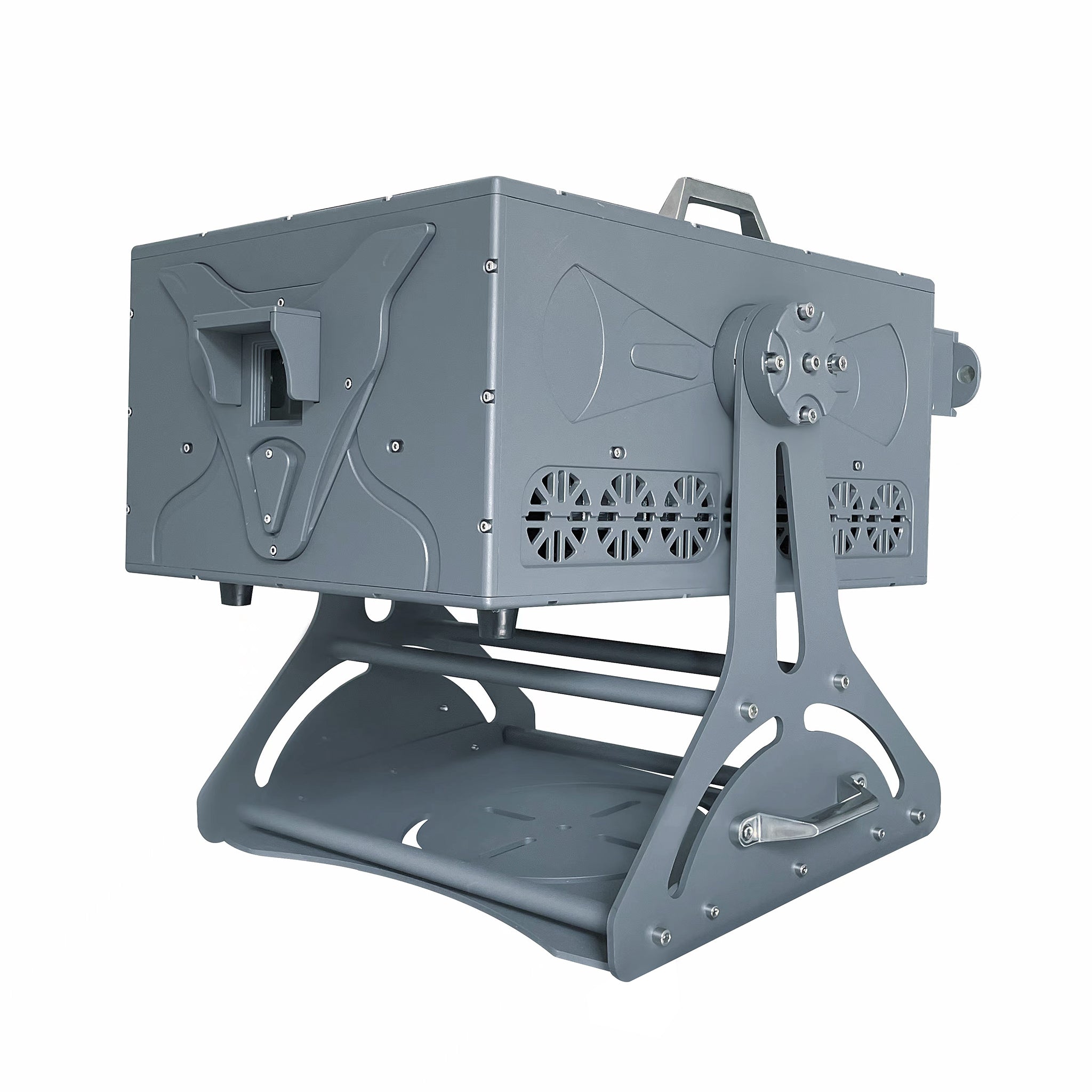

50W-60W Full Color Laser Light
Model: XHR-RGB50
Red wavelength: 638nm: 15W
Green wavelength: 520nm: 15W
Blue wavelength: 445nm: 20W
Operating voltage input: 90-250V-50/60hz (globally applicable range)
Output power: ≤650W
标题
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
PRODUCT SPECIFICATIONS
Laser power: 50W
Model: XHR-RGB50
Red wavelength: 638nm: 15W
Green wavelength: 520nm: 15W
Blue wavelength: 445nm: 20W
Operating voltage input: 90-250V-50/60hz (globally applicable
range)
Output power: ≤650W
Laser module: Pure diode (NICHA)
Laser divergence angle: <1.6mrad (full angle)
Laser spot size: <6.5mm at the output port
Modulation voltage: ≤100KHz
Graphic scanning speed: DT40K-mirror
Scanning angle: +/-30 degrees (60 degrees)
Control method: Built-in single-chip microcomputer running
program main control board, ILDA standard 25-pin connecting line/sound control/self-walking/DMX512/master-slave
networking/built-in SD card with rich animation+line+text materials, and can be
used in conjunction with American pangolin software FB4/FB3 maker and computer
PC for synchronous use
Waterproof rating: (IP rating) IP65
Product size: 53.2X67.X49.6CM handle height (44cm)
Product net weight: 77KG
Application scenarios: Cultural tourism landscape
engineering/outdoor landmarks/water curtain fountains/large-scale electronic
music festivals/mountain advertising text, etc.
Working temperature range: -50℃~50℃ for
normal use
