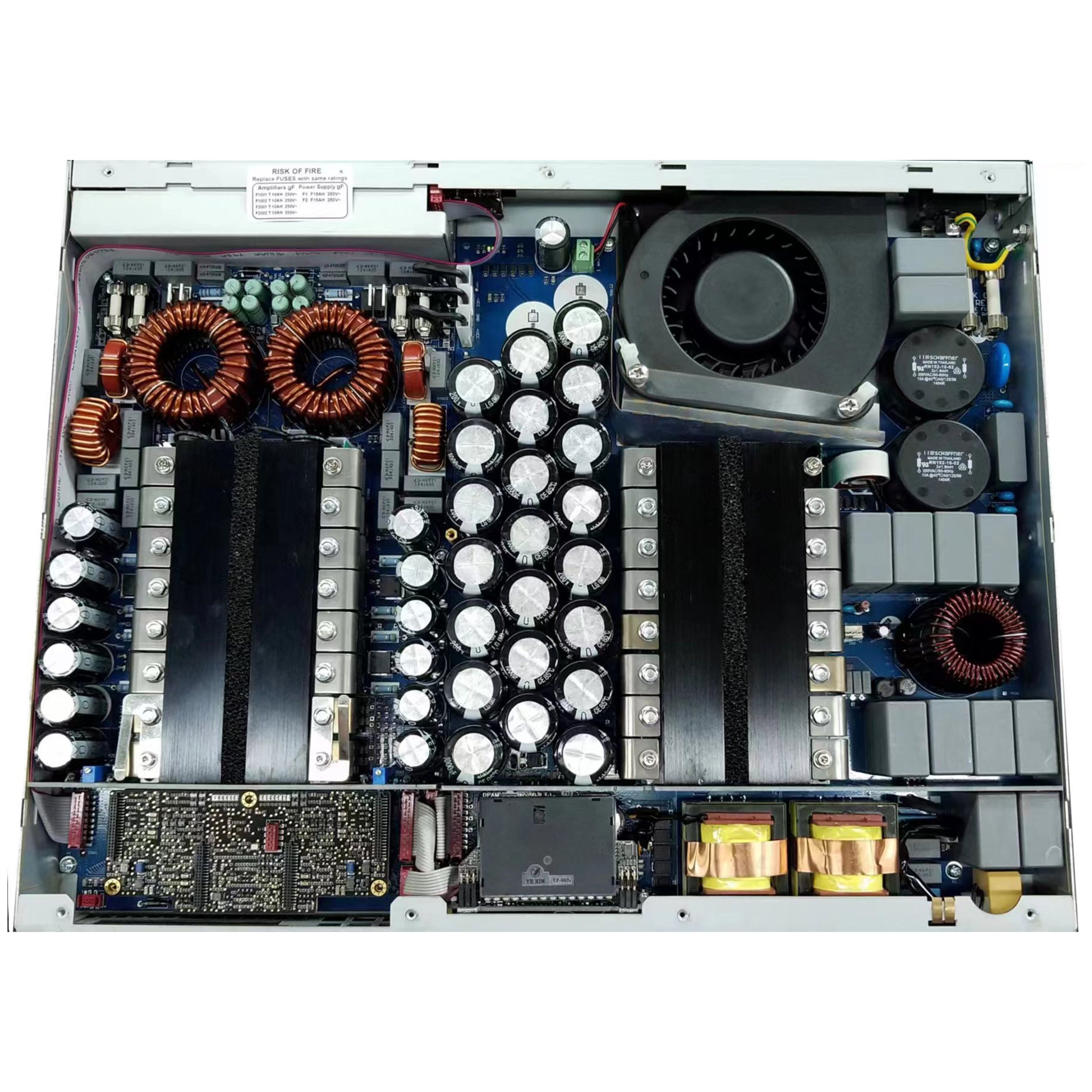

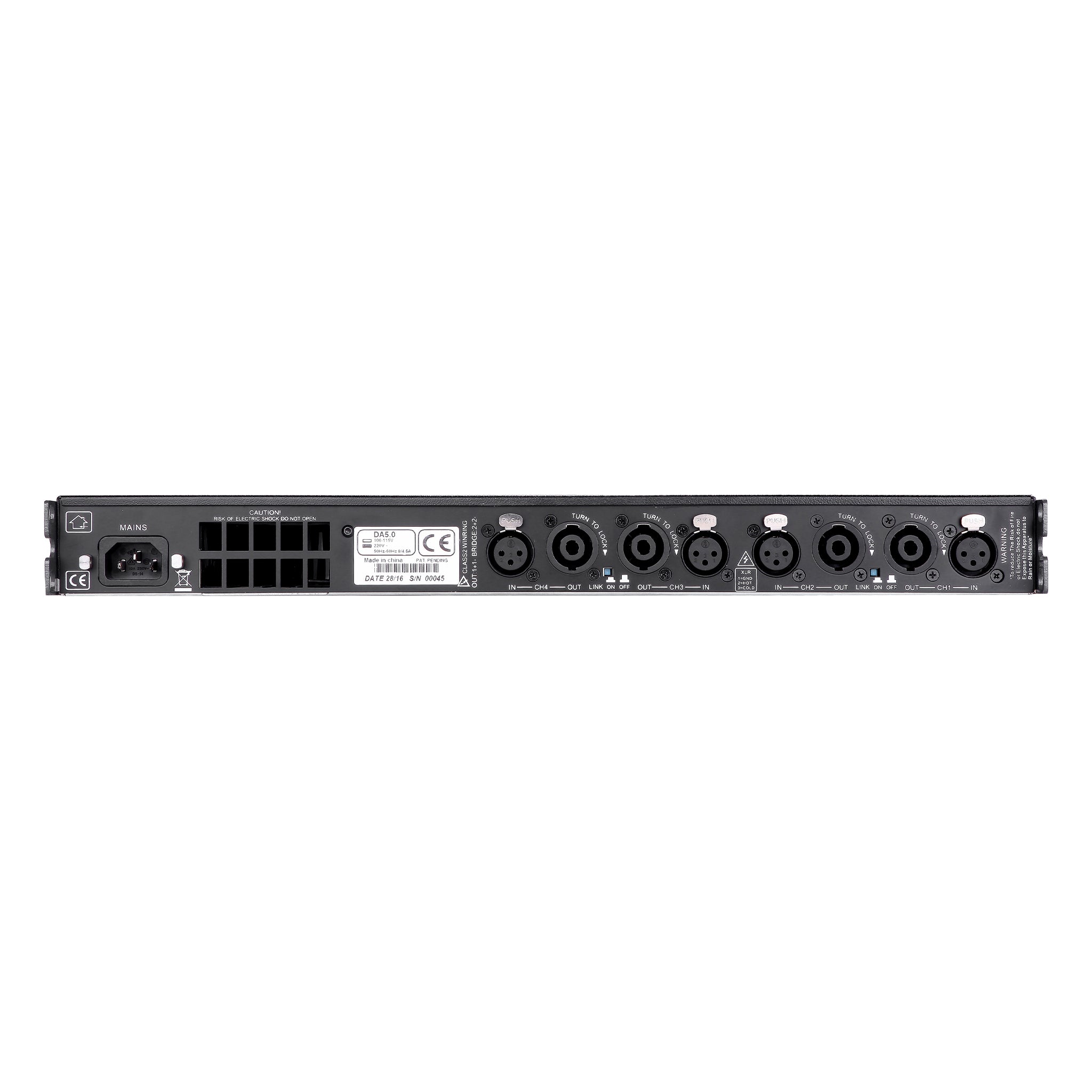

LAK3 Dual Channel Digital Amplifier

• Global adaptive wide voltage power supply (90V-264V)
• Class D amplifier with PFC function
• Digital gain reduction control
• Temperature controlled continuously variable speed fan for front to back air flow
• Temperature forecast, LCD screen historical temperature display
• Comprehensive protection features
Such as: overheating, AC, DC, short circuit, overload, clipping limiter, long-term limiter, etc.
• LCD matrix interactive display
• Comprehensive user-friendly front panel display menu
• Built-in disableable clip limiter per channel
• Disableable gate strobing for each channel
• User selectable gain/sensitivity
• User selectable maximum output power per channel
• User-selectable maximum supply current draw
• User selectable password to lock

Maximum output power (EIAJ test standard): Stereo 2*1400W/8Ω, 2*2600W/4Ω, 2*2800W/2Ω; bridged 5200W/8Ω, bridged 5600W/4Ω
Working voltage: 90V-264V
Gain: 26dB\29dB\32dB\35dB
Input sensitivity: 5.3V/3.75V/2.66V/1.88V
Frequency response: 20Hz-20kHz (±0.5dB)@1W, 8Ω
Signal-to-noise ratio: >106dB (20Hz-20kHz, A weighted)
Crosstalk isolation: >70dB@1kHz
THD+N: < 0.3% from 1W to full power
DIM100: < 0.3% from 1W to full power
Input impedance: 10kΩ balanced
Conversion rate: 50V/μs@8Ω, input filter bypassed
Damping coefficient: >5000@20-200Hz
Size (L*H*W): 483mm*44.45mm*358mm
Weight: about 9.1kg
