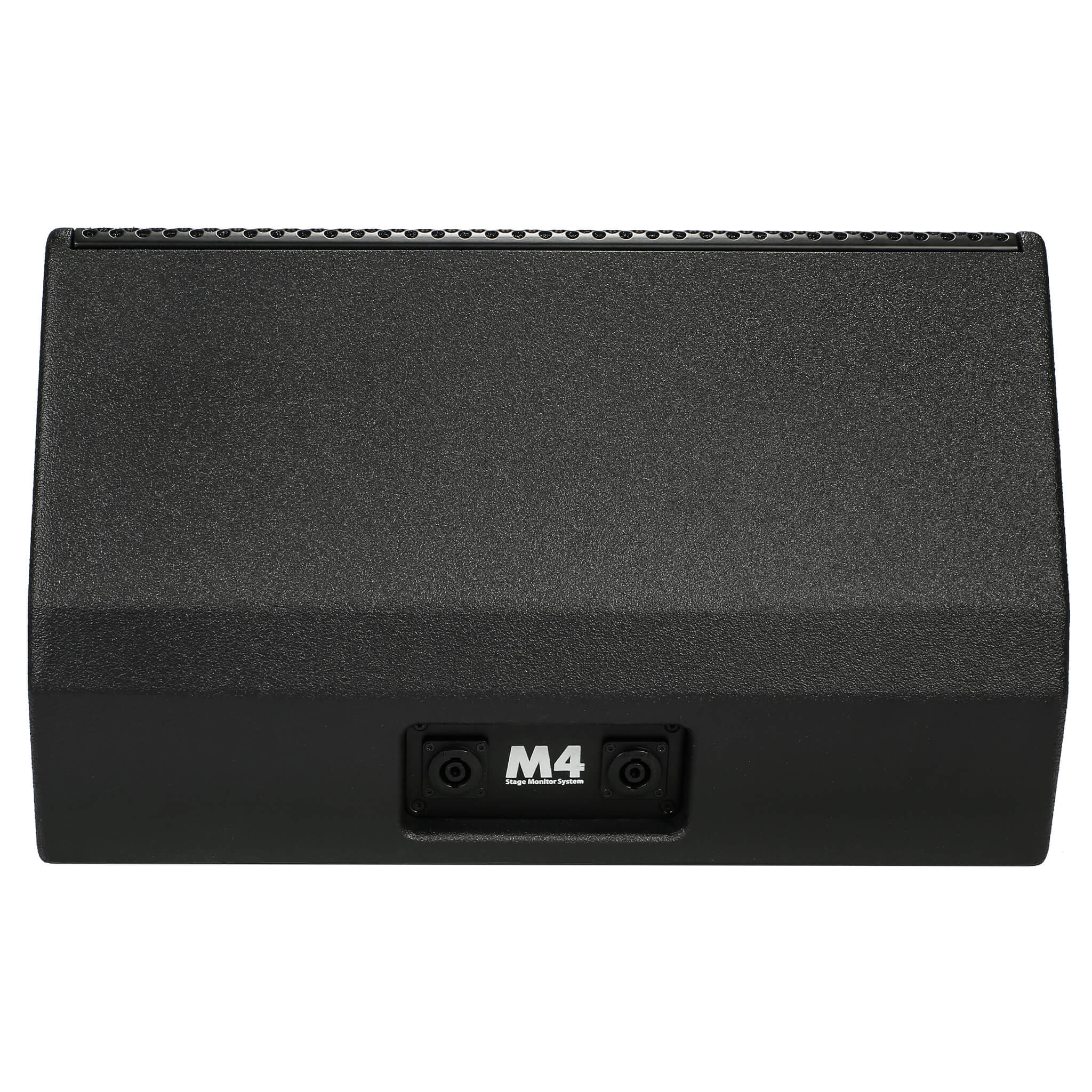

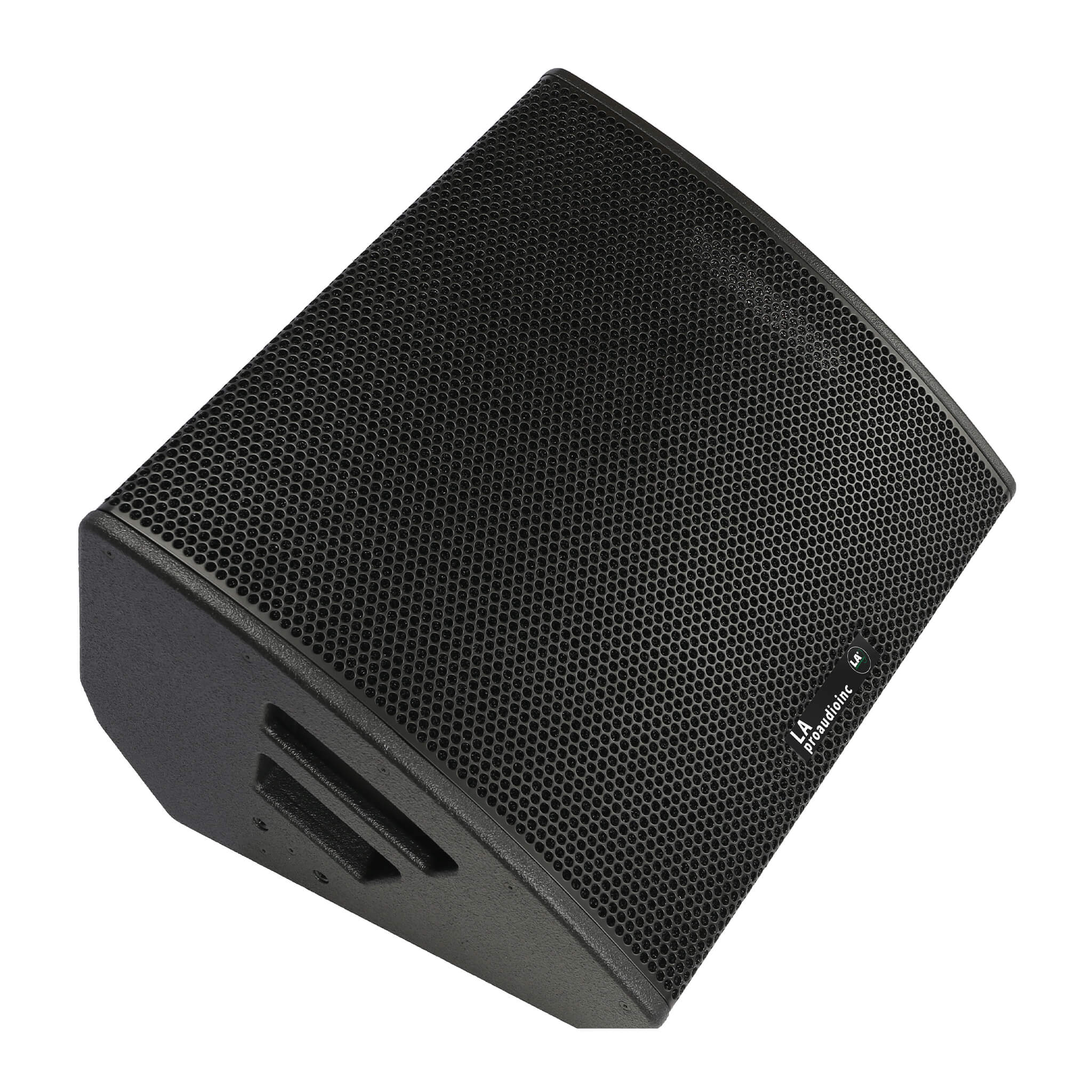

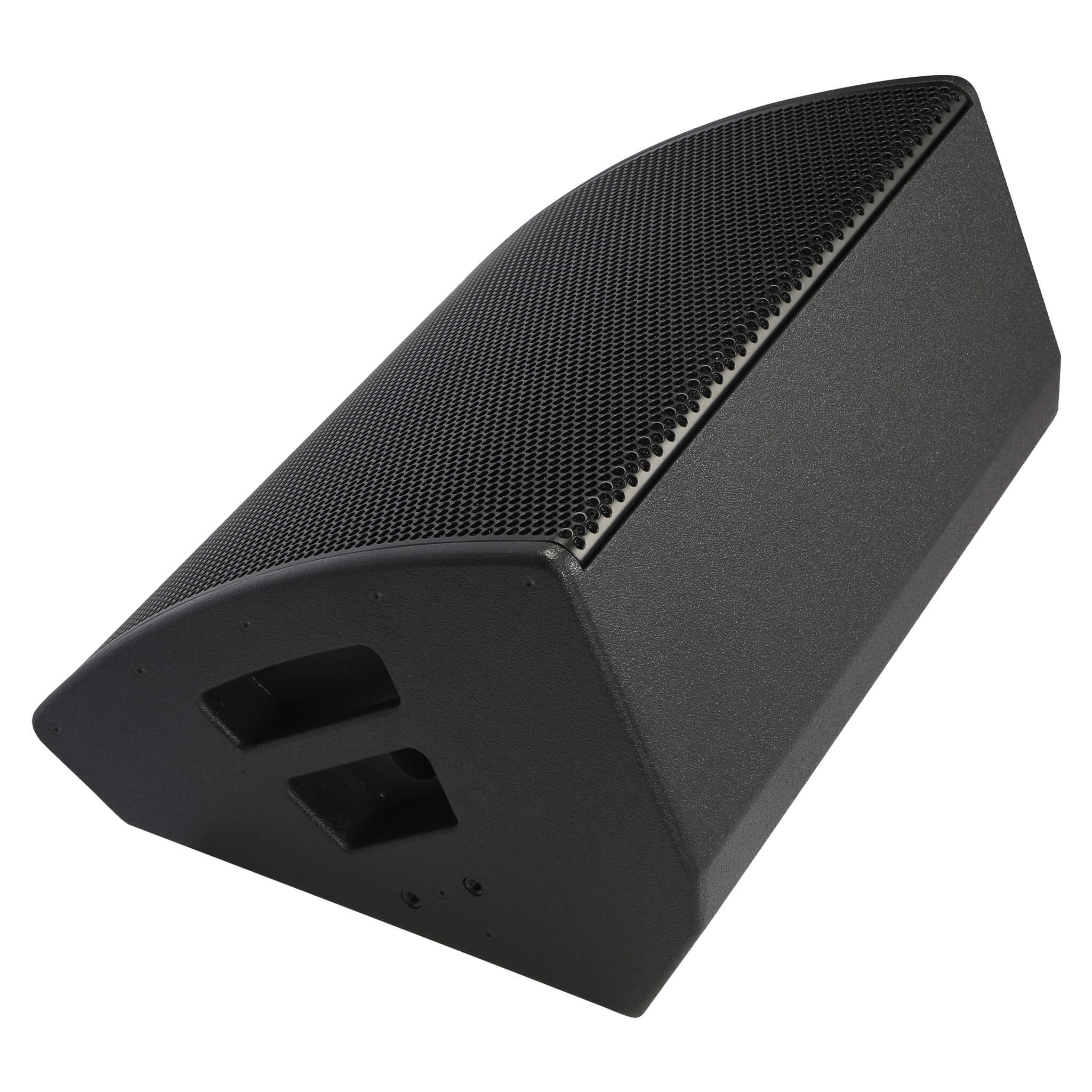

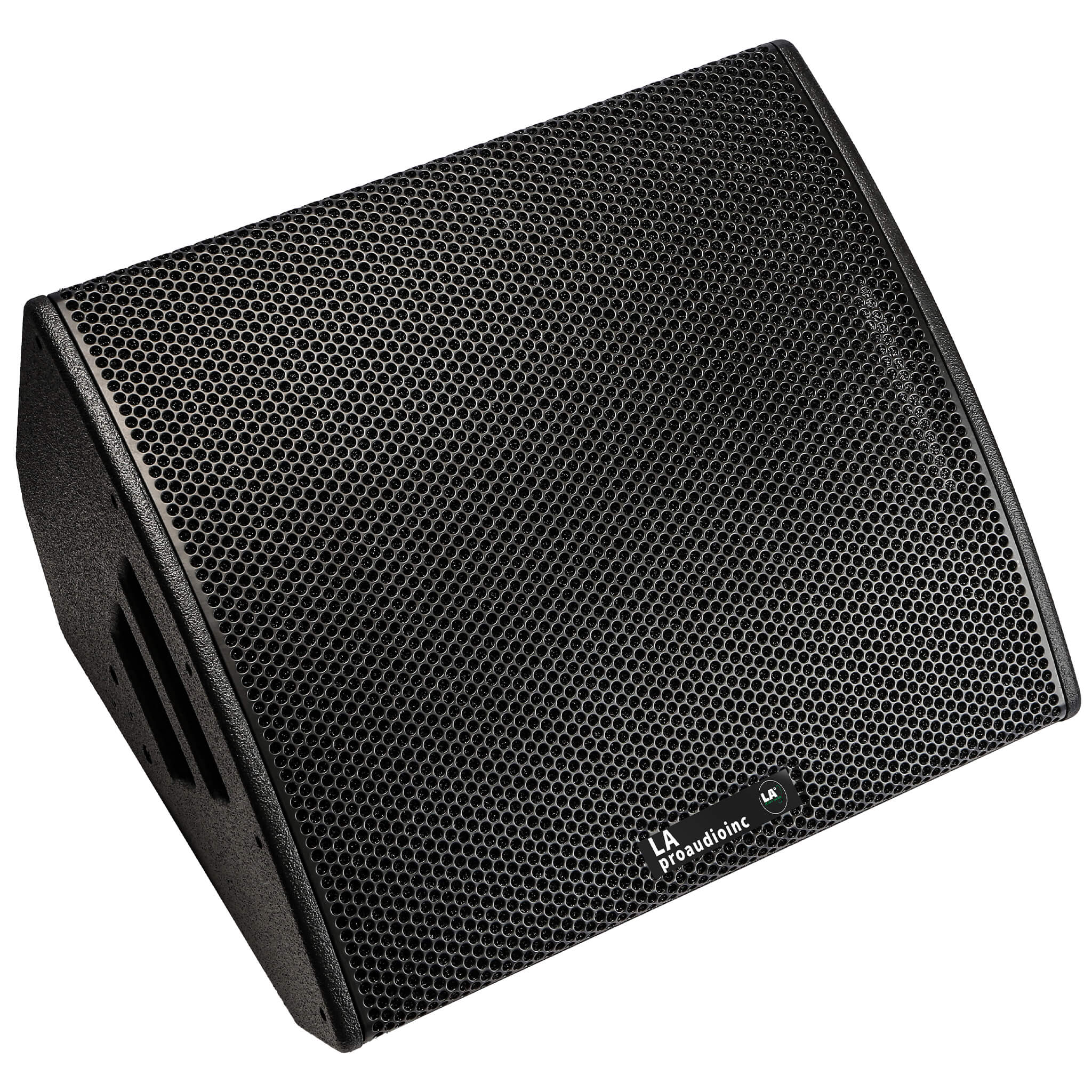

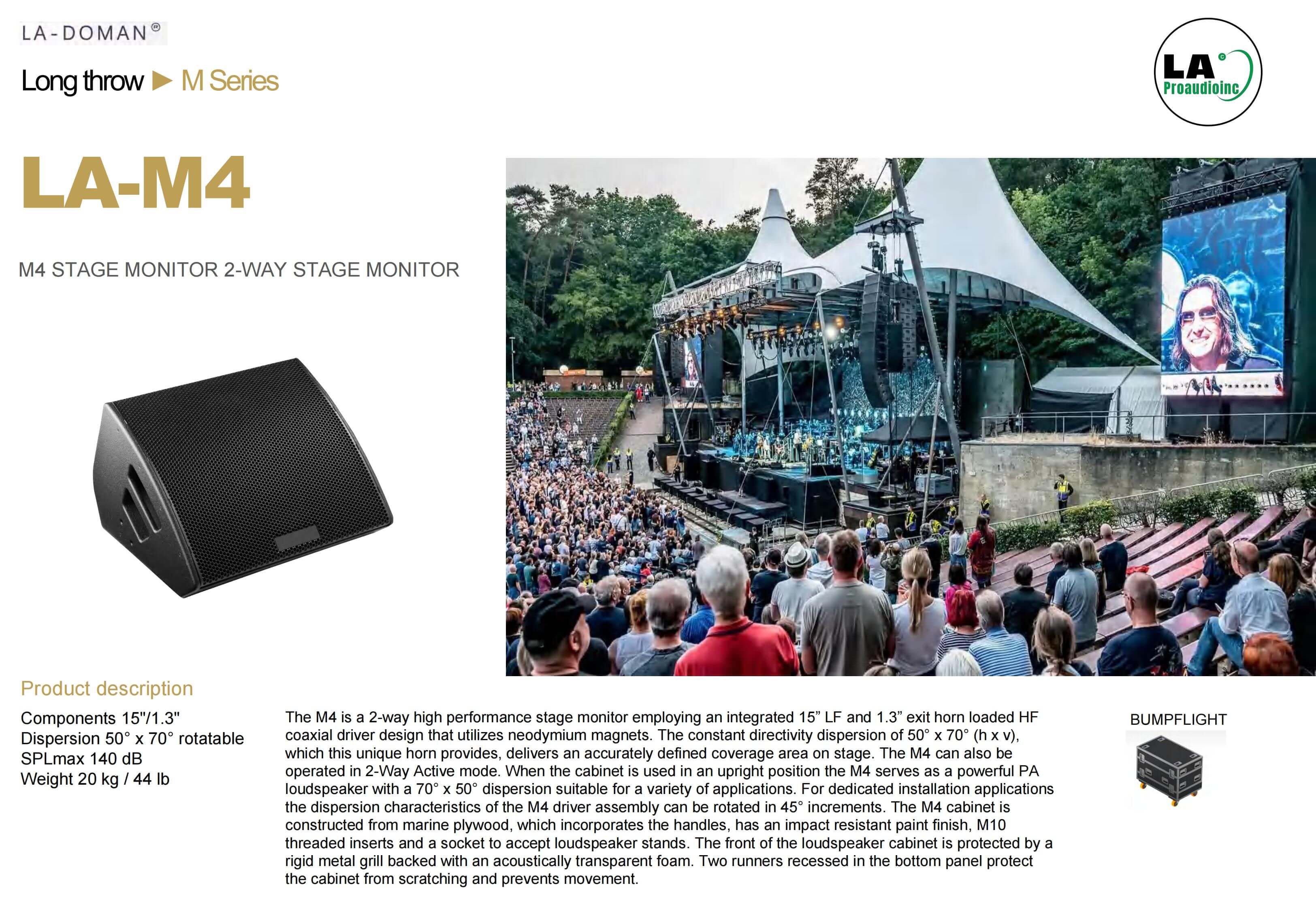

M4 Stage Monitors 2-Way Stage Monitor

Sale price

Components 15"/1.3"
Dispersion 50° x 70° rotatable
SPLmax 140 dB
Weight 20 kg / 44 lb Article number Z0800

    标题

    System dataFrequency response (-5 dB standard)55 Hz - 17 kHz1Max. sound pressure2with 10Dwith D20/30Dwith D40/D80/40D134 dB3/ 135 dB4138 dB3/ 140 dB5138 dB3/ 140 dB5Cabinets per amplifier channel (passive mode)2Cabinets per D20/D80 (active mode)4Loudspeaker dataConfiguration2-way stage monitorNominal impedance8 ΩPower handling capacity (RMS/peak 10 ms)400/1600 WNominal dispersion angle (h x v)50° x 70° rotatableComponents15" driver with neodymium magnetcoaxial 1.3" exit compression driver with 3" coil and CD hornpassive crossover networkConnections2 x NLT4 F/Moptional 2 x NL4Dimensions / weightDimensions (H x W x D)363 x 580 x 505 mm614.3 x 22.8 x 19.9" 2Weight20 kg44 lb

    1 with floor coupling
    2 1 m, free field, SPL max peak test signal: pink noise with crest factor 4, one speaker driven
    3 passive mode
    4 active mode (10D only)
    5 active mode
    6 overall dimensions (projected footprint)

    Amplifier

    The following specifications of power amplifiers can be used to drive AL90.

    Recommended products

    System data

    Frequency response (-5 dB standard):55 Hz - 17 kHz1

    Max. sound pressure2

    with 10D: 134 dB3/135 dB4

    with D20/30D:138 dB3/140 dB5

    with D40/D80/40D:138 dB3/ 140 dB5

    Cabinets per amplifier channel (passive mode):2

    Cabinets per D20/D80 (active mode):4

    Loudspeaker data

    Configuration:2-way stage monitor

    Nominal impedance:8 Ω

    Power handling capacity (RMS/peak 10 ms):400/1600 W

    Nominal dispersion angle (h x v):50° x 70° rotatable

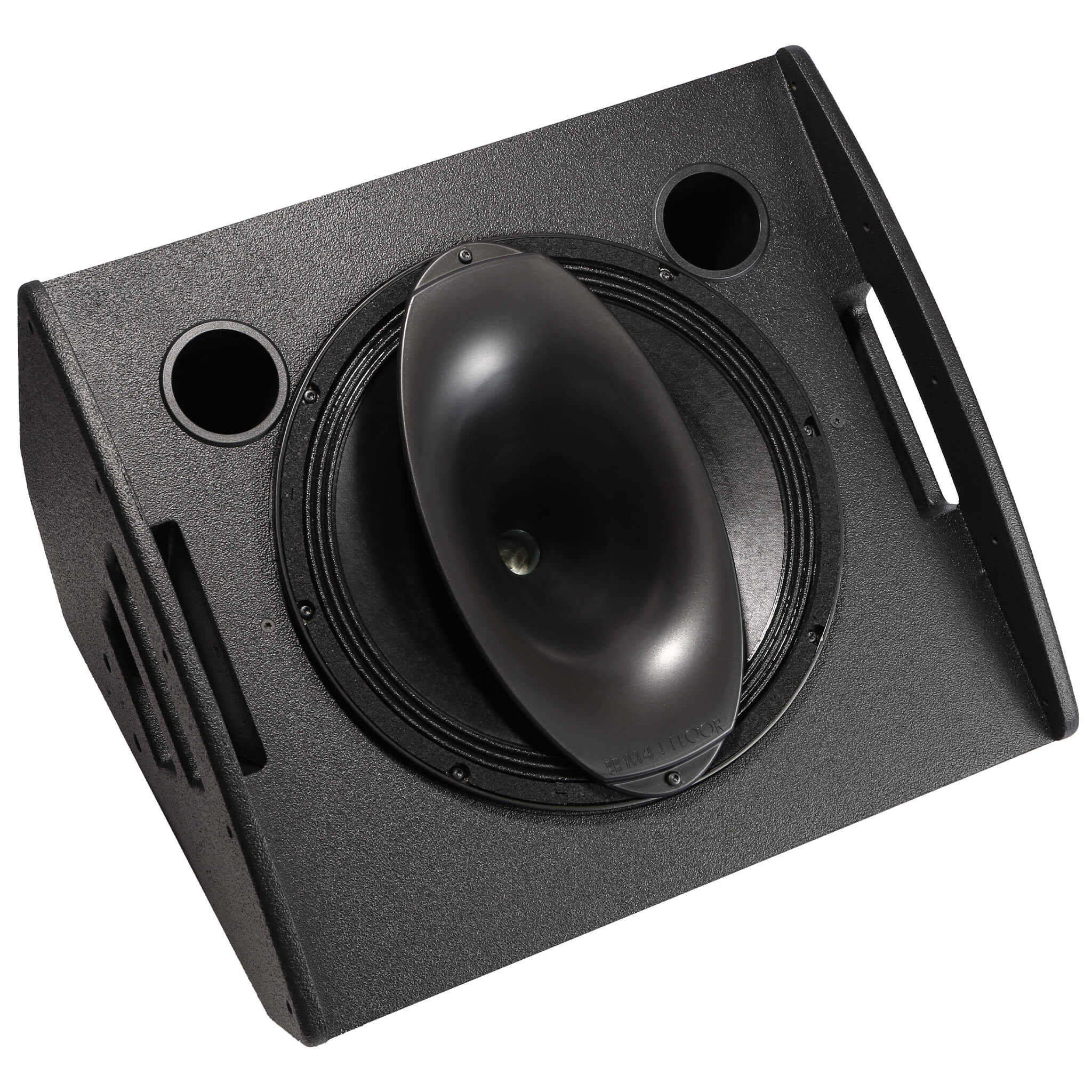

    Components:15" driver with neodymium magnet coaxial 1.3" exit compression driver with 3" coil and CD horn passive crossover network

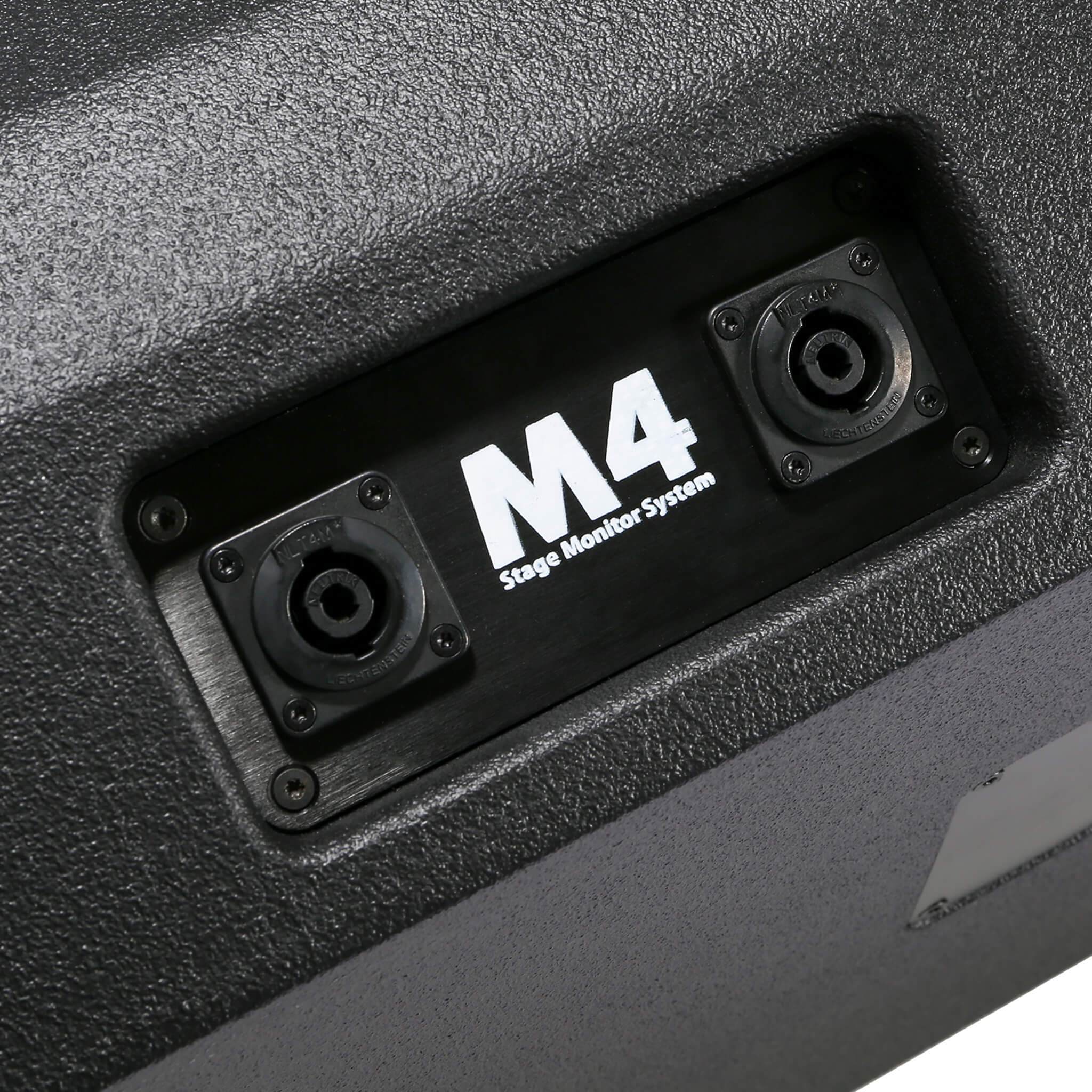

    Connections:2 x NLT4 F/M optional 2 x NL4

    Dimensions/weight

    Dimensions (H x W x D):363 x 580 x 505 mm6 14.3 x 22.8 x 19.9" 2

    Weight:20 kg 44 lb
