The Price Displayed On The Product Does Not Include Tax And Shipping. The Shipping Cost Shown On The Page Is Not The Final Shipping Cost. Please Consult Customer Service For Shipping Costs Or Tax Rates Before Placing An Order.

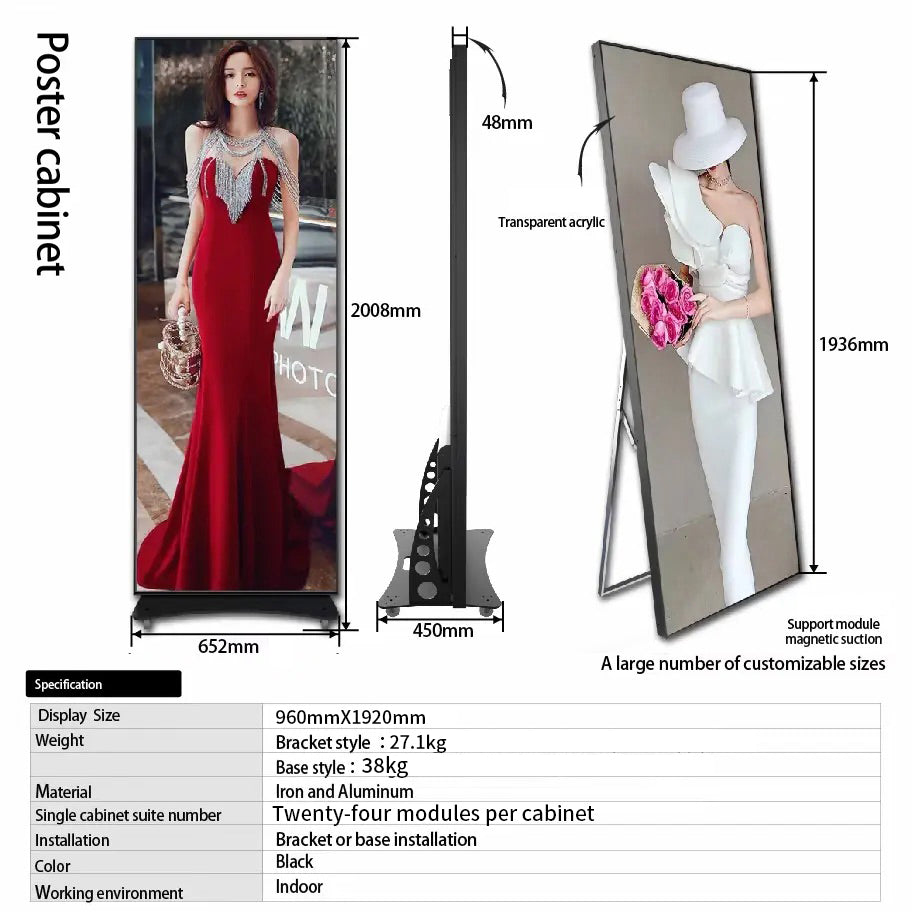

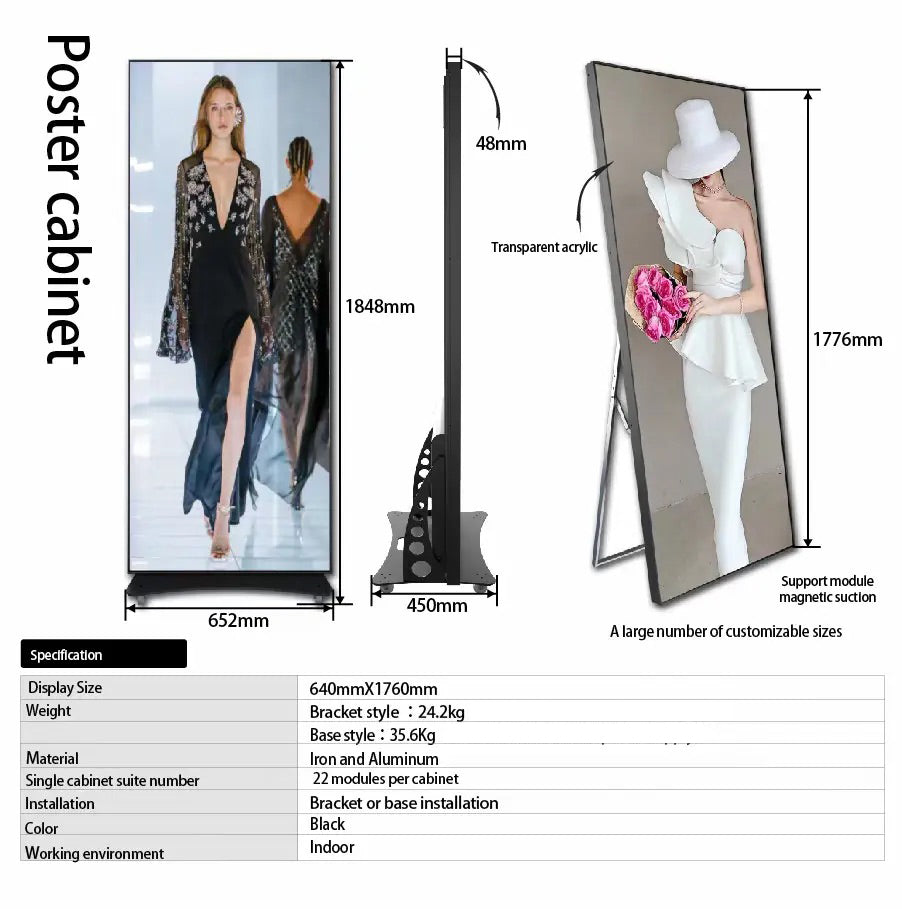

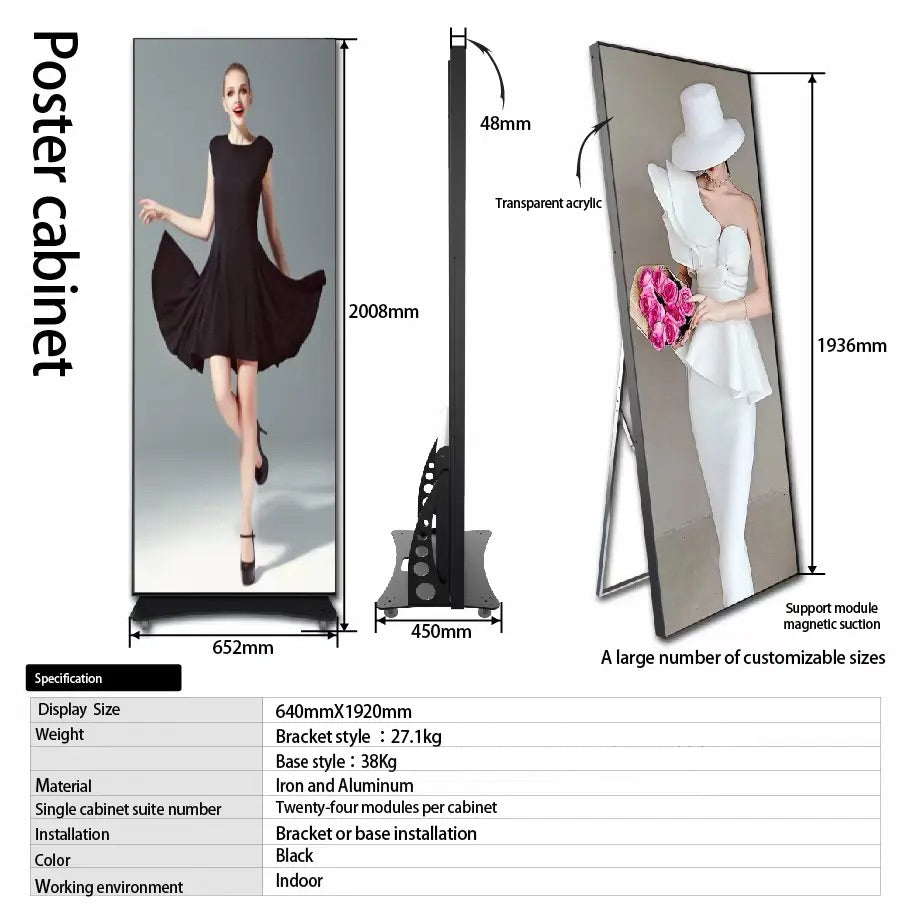

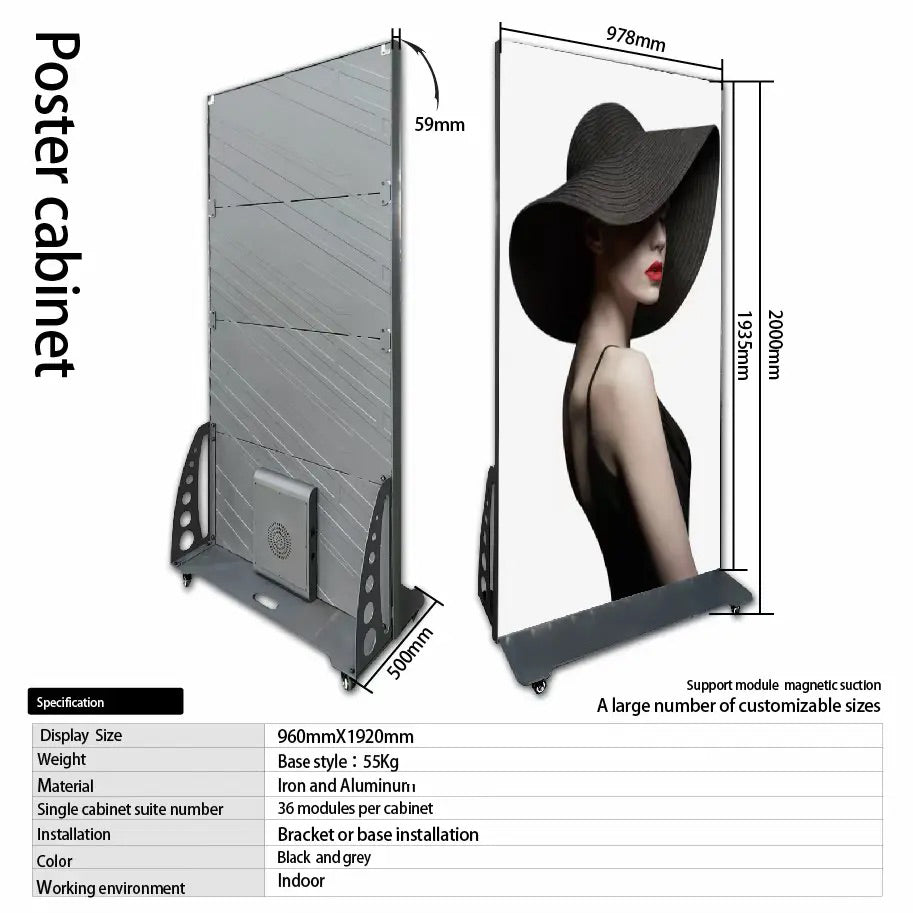

P1.8 P2.5 P3 LED electronic poster screen, LED advertising machine


Sale price

Supports one-click upload of materials on mobile phone, with clear picture, mostly used in shopping malls, shops, conference halls, schools, hospitals, etc.

    标题

    Amplifier

    The following specifications of power amplifiers can be used to drive AL90.

    Recommended products

    PRODUCT SPECIFICATIONS

    LED parameters

    3in1 SMD1921

    Red:620~625nm 140°/140°

    Green:520~525nm 140°/140°

    Blue:465~467nm 140°/140°

    Screen Size   1000sqm

    Panel Quantity    2000
    panels

    Controlling system   Nova

    Control method    SYNCHRONOUS

    Drive Chip Fuman
    6363 High Brush Chip

    Input Voltage AC220V,
    50~60HZ

    Protective Grade
    IP65

    Control Distance  Cat5
    120m/Optical fiber 15km

    Operating Temp    -10℃~+45℃

    Operating Humidity   10-90%RH

    Driving Method    1/16
    scan

    View Angle 160°/160°

    Viewing Distance  3m
    - 16m

    Refresh frequency 7086Hz

    Gamma Correction  10
    Levels

    Screen Color  16.7m

    Grey Scale 14
    bits/ic16380

    Operating Life    100,000
    hours

    MTBF   10,000
    hours

    Defects Rate  ≤0.02%

    Driving Method    1/16
    scan

    View Angle 160°/160°

    Viewing Distance  3m
    - 16m

    Refresh frequency 3840Hz

    Gamma Correction  10
    Levels

    Screen Color  16.7m

    Grey Scale 14
    bits/ic16380

    Operating Life    100,000
    hours

    MTBF   10,000
    hours

    Defects Rate  ≤0.02%

    Size (w*h) 500mmx
    1000mm

    Resolution 128(w)
    x256(h)

    Quantity(modules) 2pcs(w)
    x4pcs(h)

    Panel Weight  about
    13kg

    Brightness around
    4800 cds/㎡

    Max. Power 210/426w/panel

    Ave. Power 80/170
    w/panel

    Material   Aluminum

    Title File Type

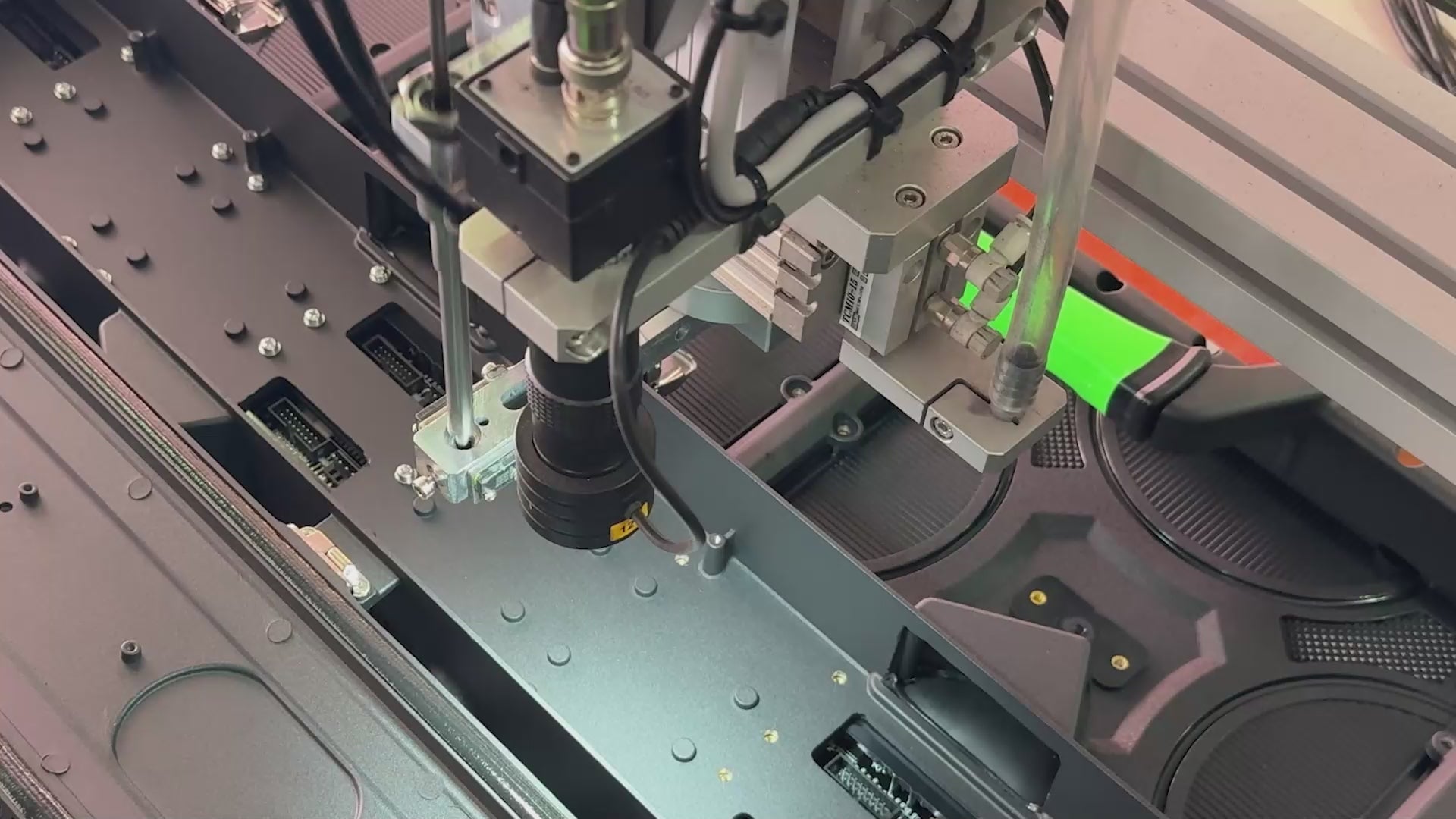

    Fully automatic production
