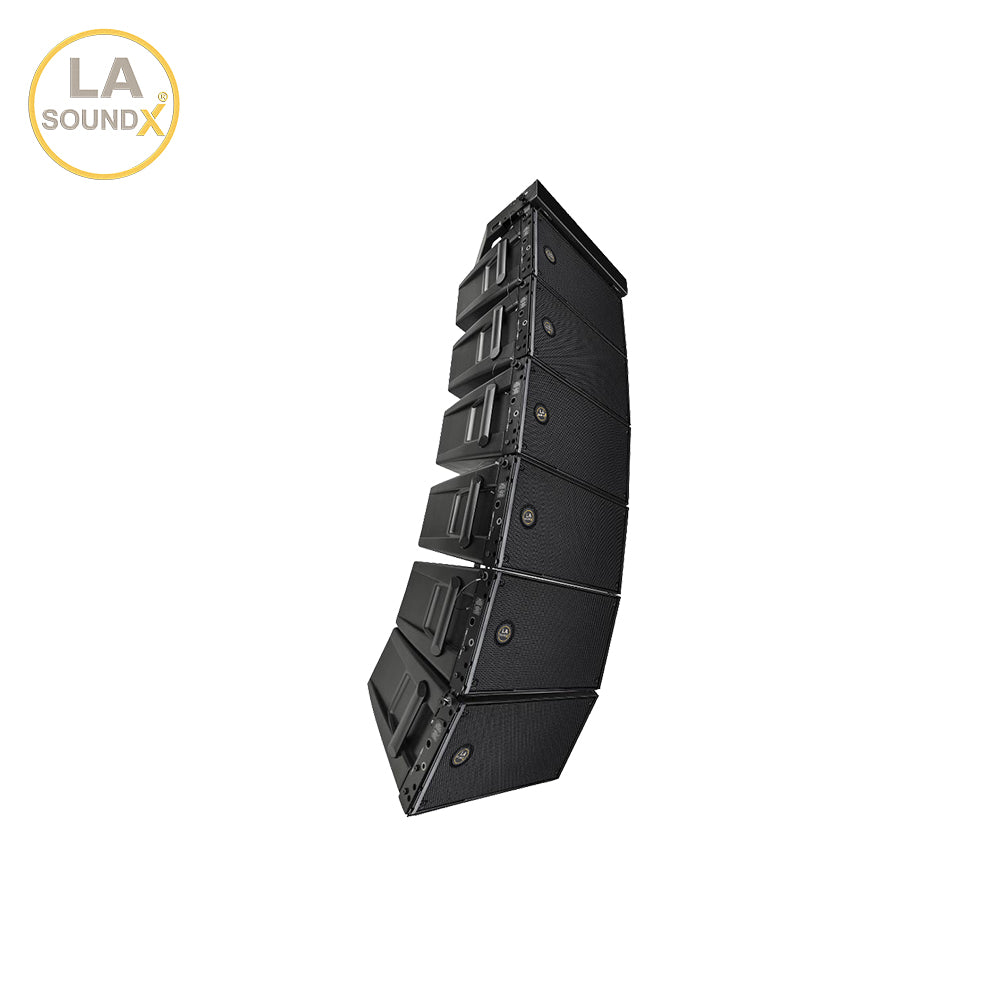

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

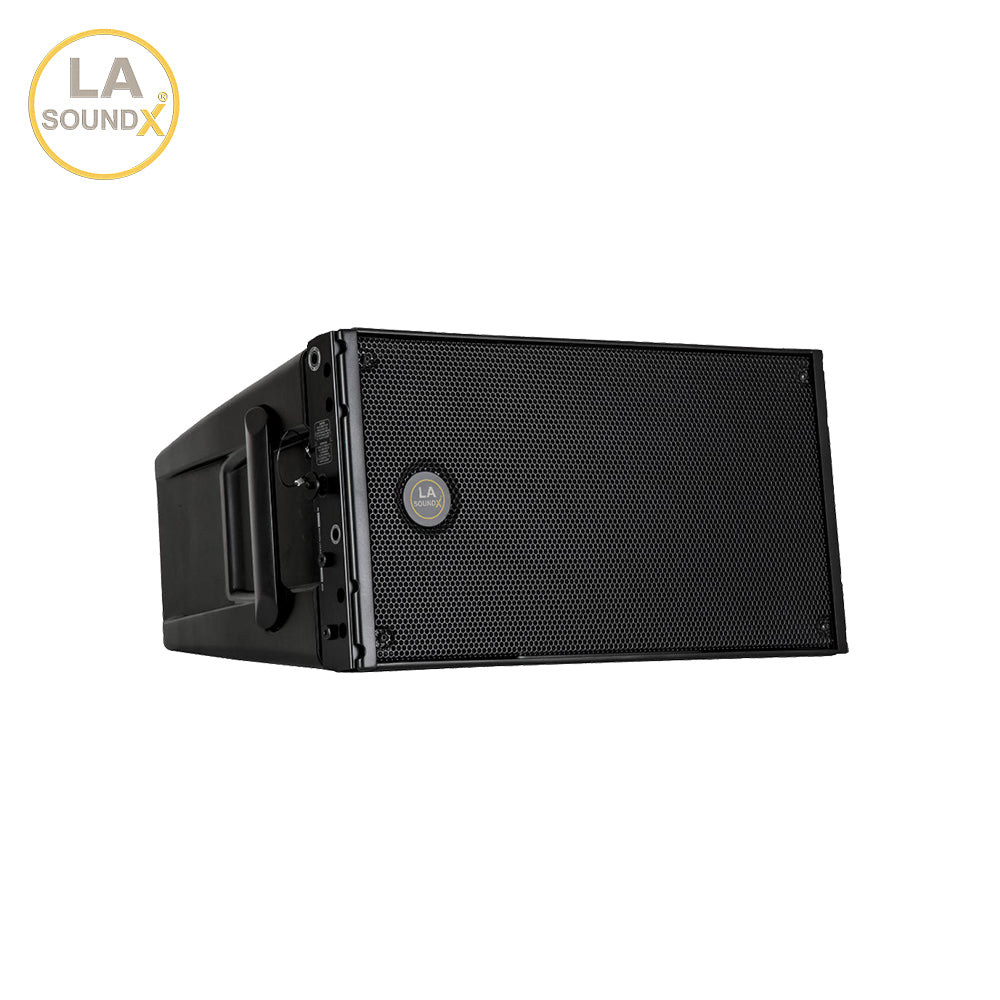

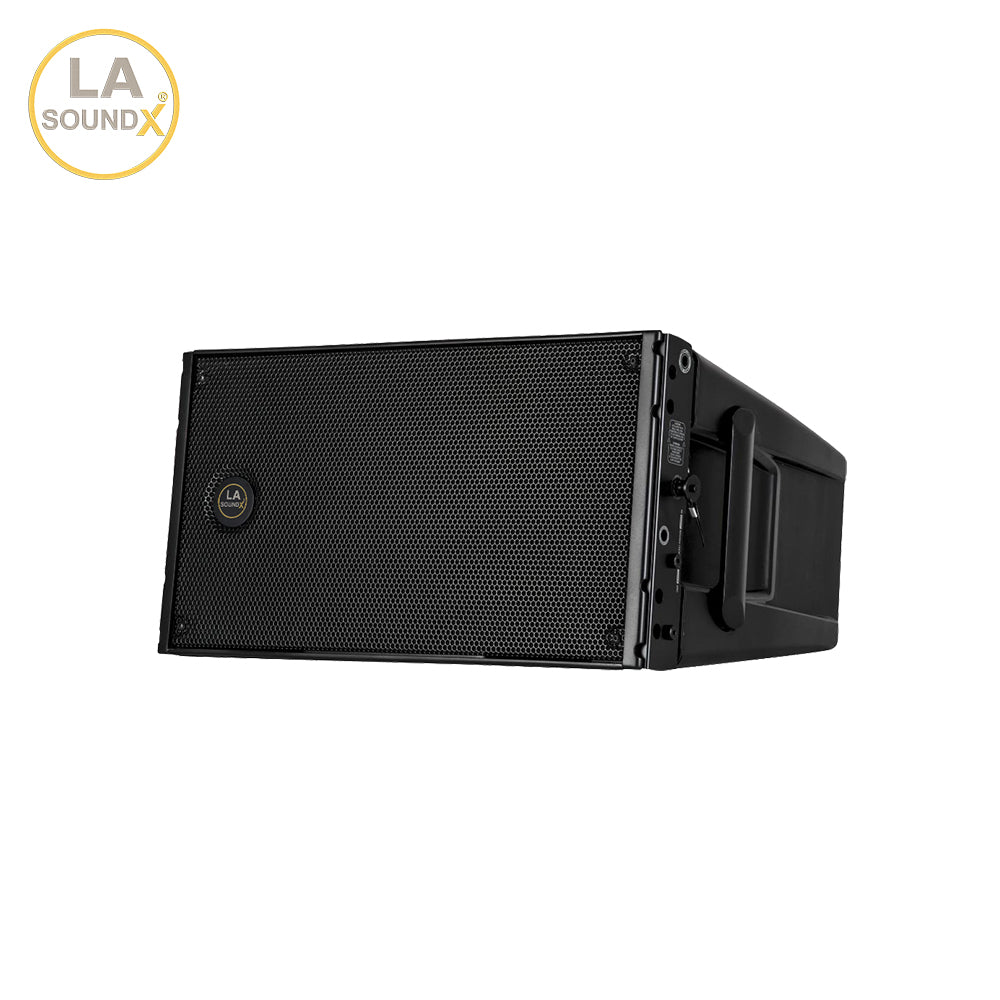

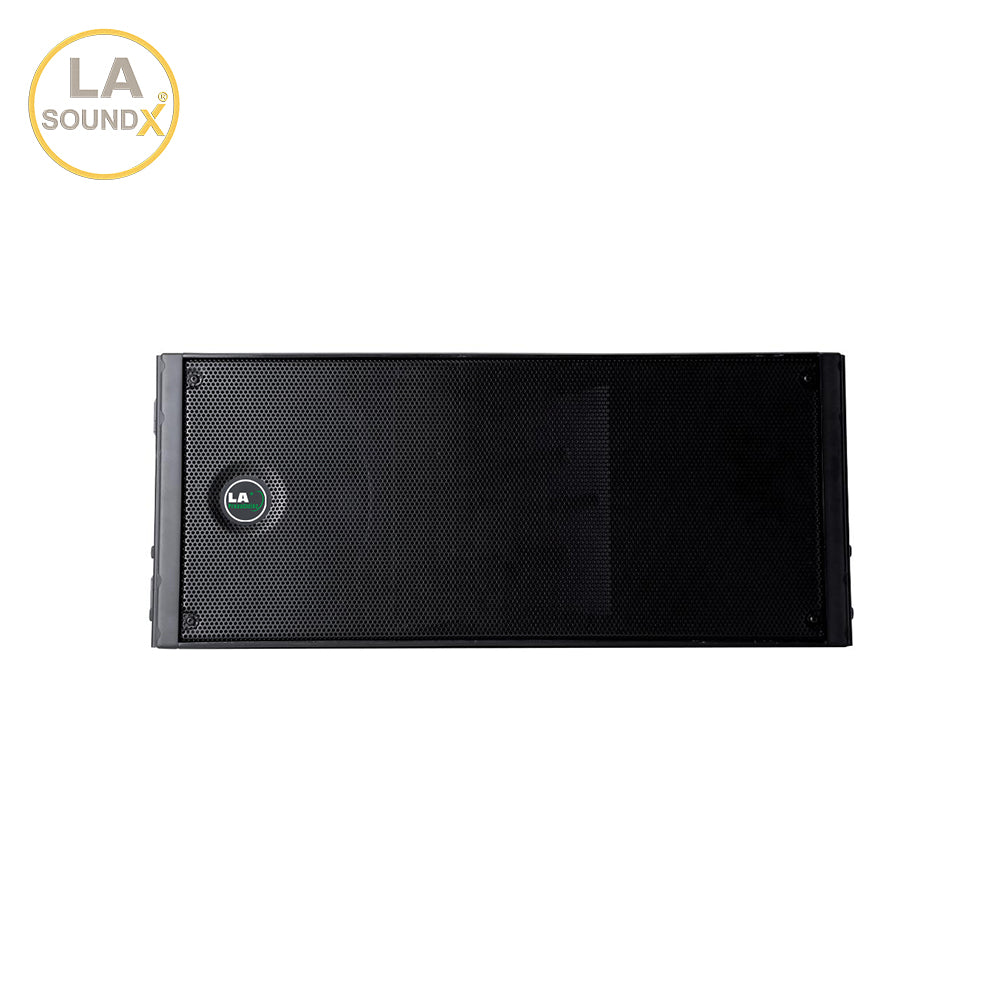

HDL 10-A ACTIVE LINE ARRAY MODULE

Sale price
Sold out

  • 1400 Watt Peak power - 700 Watt RMS
  • 2 x 8" Woofers
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response

    标题

    Amplifier

    The following specifications of power amplifiers can be used to drive AL90.

    Recommended products

    SPECIFICATIONS

    Frequency Response:65 Hz ÷ 20000 Hz

    Max SPL @ 1m:133 dB

    Horizontal coverage angle:100°

    Vertical coverage angle:15°

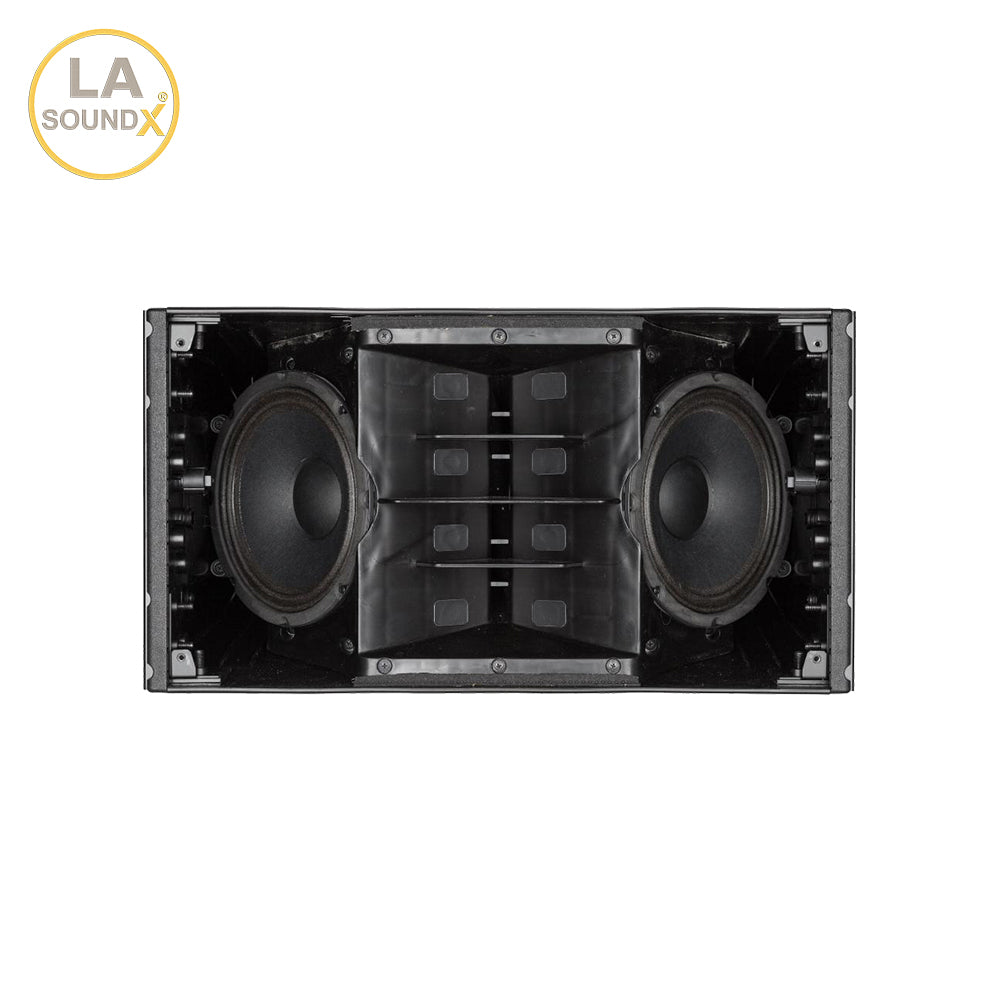

    Compression Driver:1 x 2.0'', 2.5'' v.c

    Woofer:2 x 8'', 2.0'' v.c

    Input signal:bal/unbal

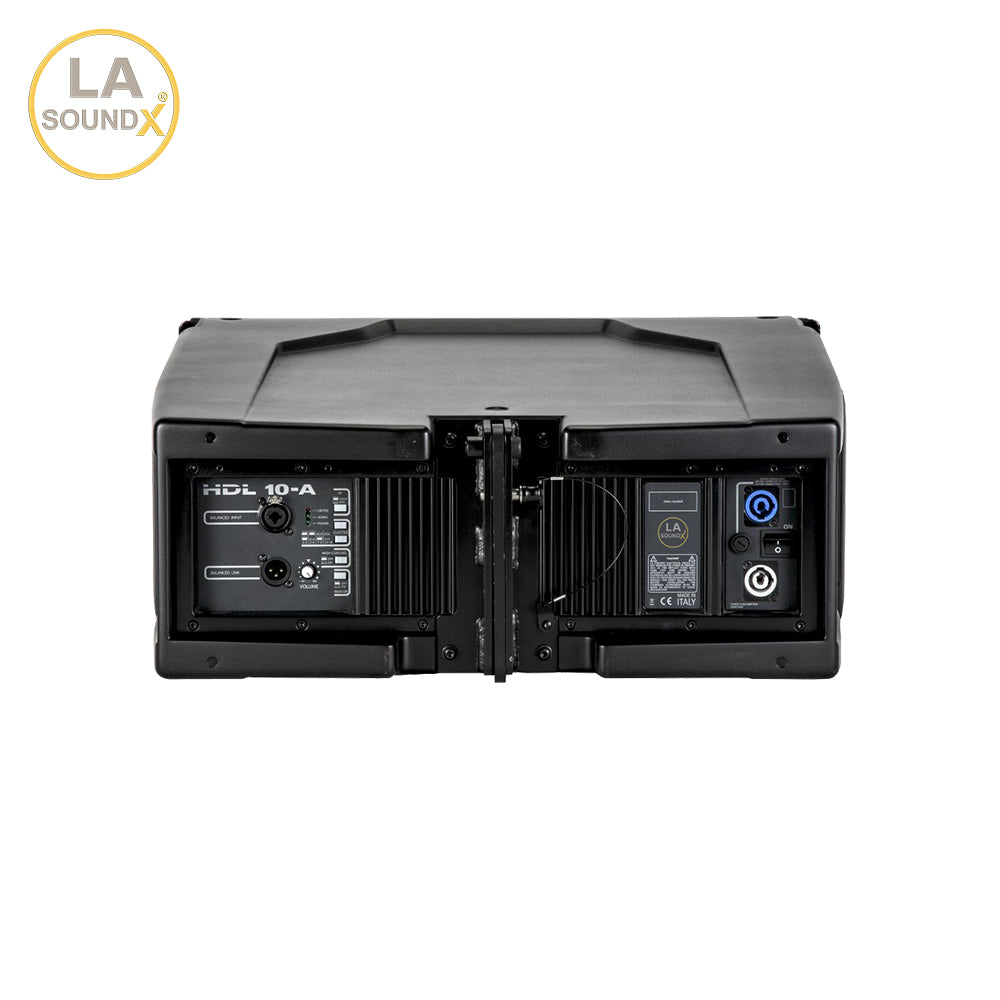

    Input connectors:XLR

    Output connectors:XLR

    Input sensitivity:-2 dBu/+4 dBu

    Crossover Frequencies:800 Hz

    Protections:Thermal, RMS

    Limiter:Soft Limiter

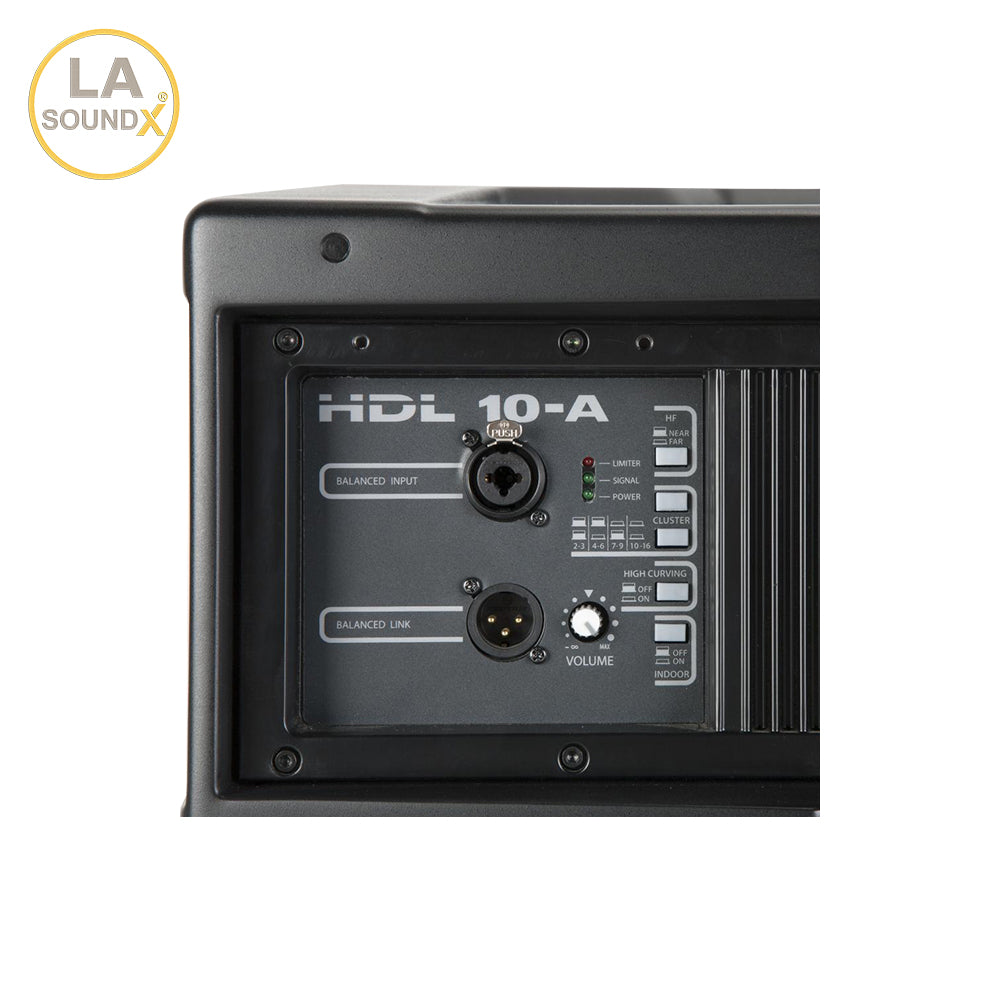

    Controls:Cluster, HF, High curving, Indoor

    Total Power:1400 W Peak, 700 W RMS

    High frequencies:400 W Peak, 200 W RMS

    Low frequencies:1000 W Peak, 500 W RMS

    Cooling:Convection

    Connections:Powercon IN/OUT

    Safety agency:CE compliant

    Cabinet/Case Material:PP Composite

    Hardware:Rigging flyware

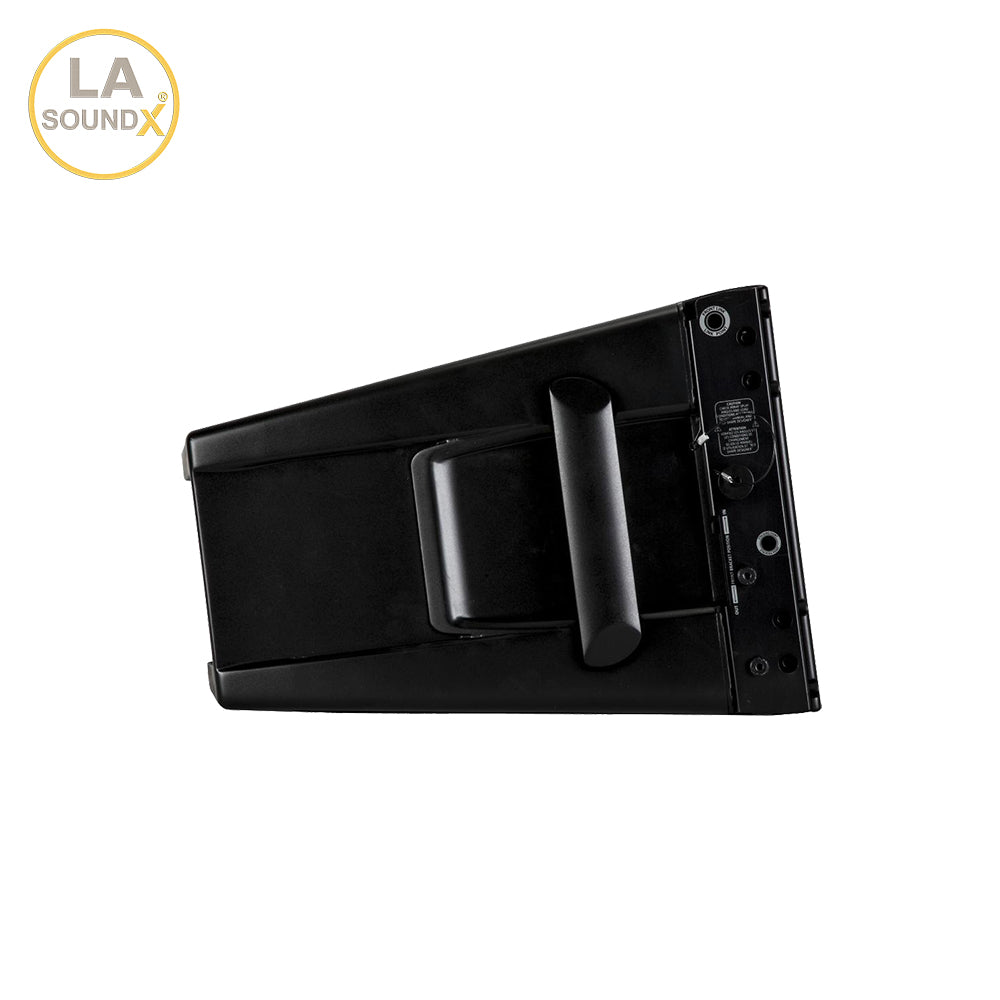

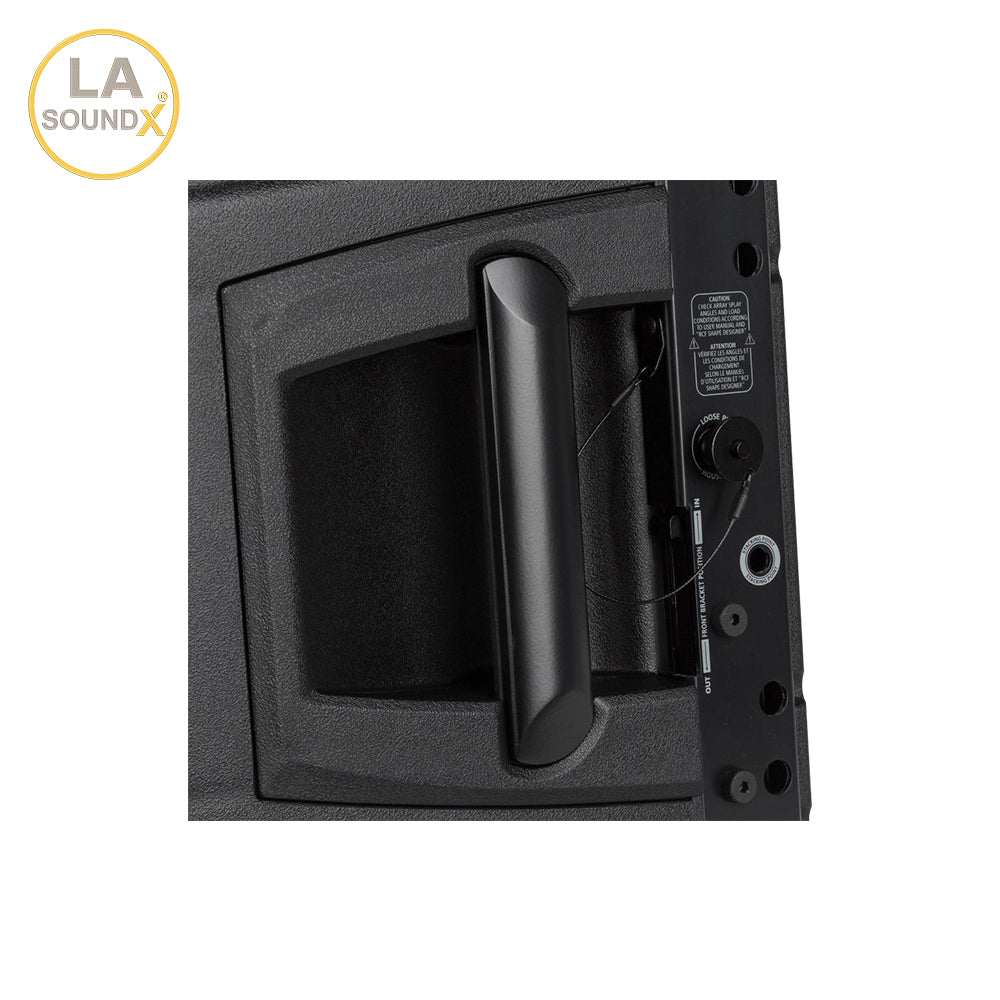

    Handles:2 side

    Grille:Steel

    Color:Black, White

    Height:294 mm / 11.57 inches

    Width:569 mm / 22.4 inches

    Depth:434 mm / 17.09 inches

    Weight:20.4 kg / 44.97 lbs

    Package Height:375 mm / 14.76 inches

    Package Width:650 mm / 25.59 inches

    Package Depth:500 mm / 19.69 inches

    Package Weight:23 kg / 50.71 lbs
