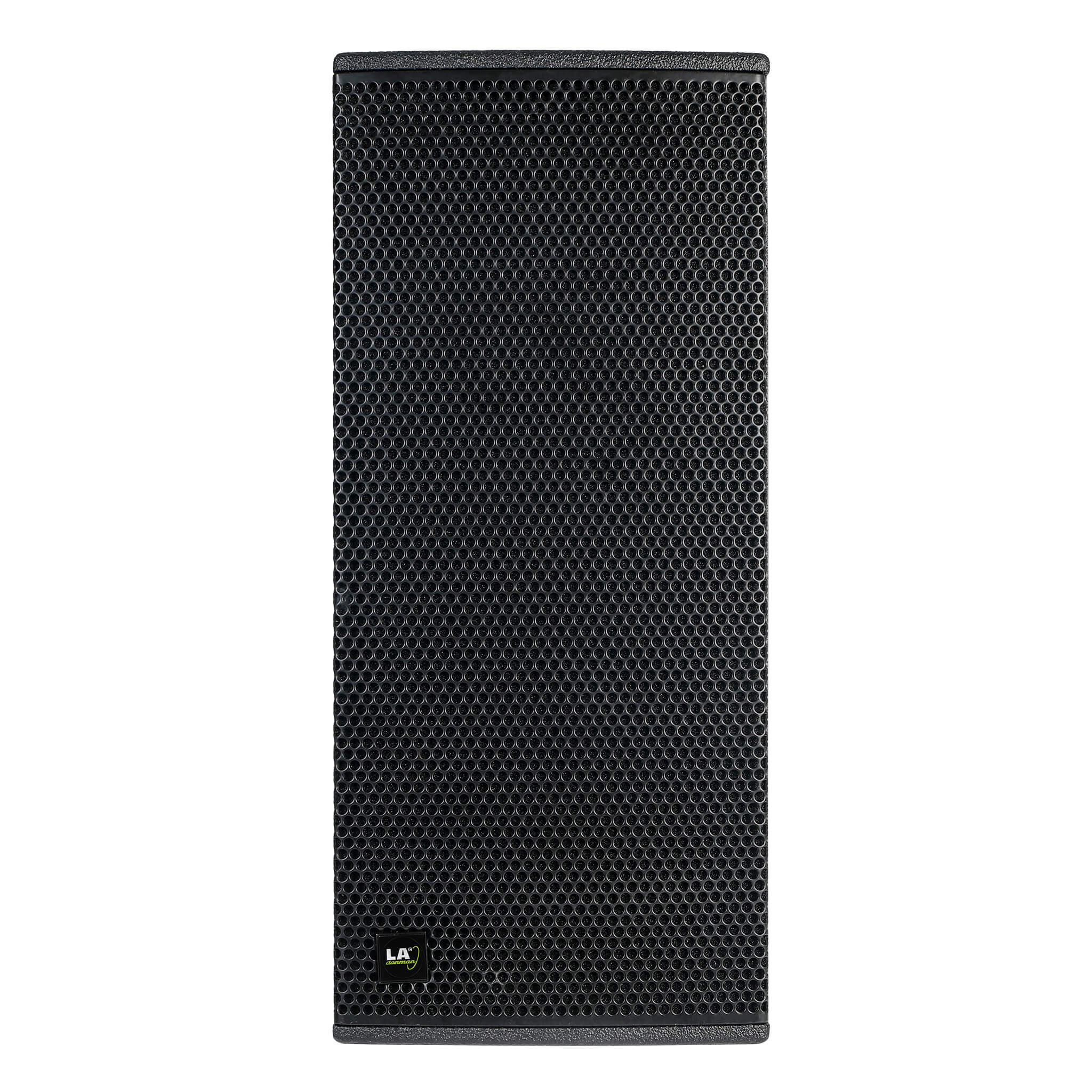

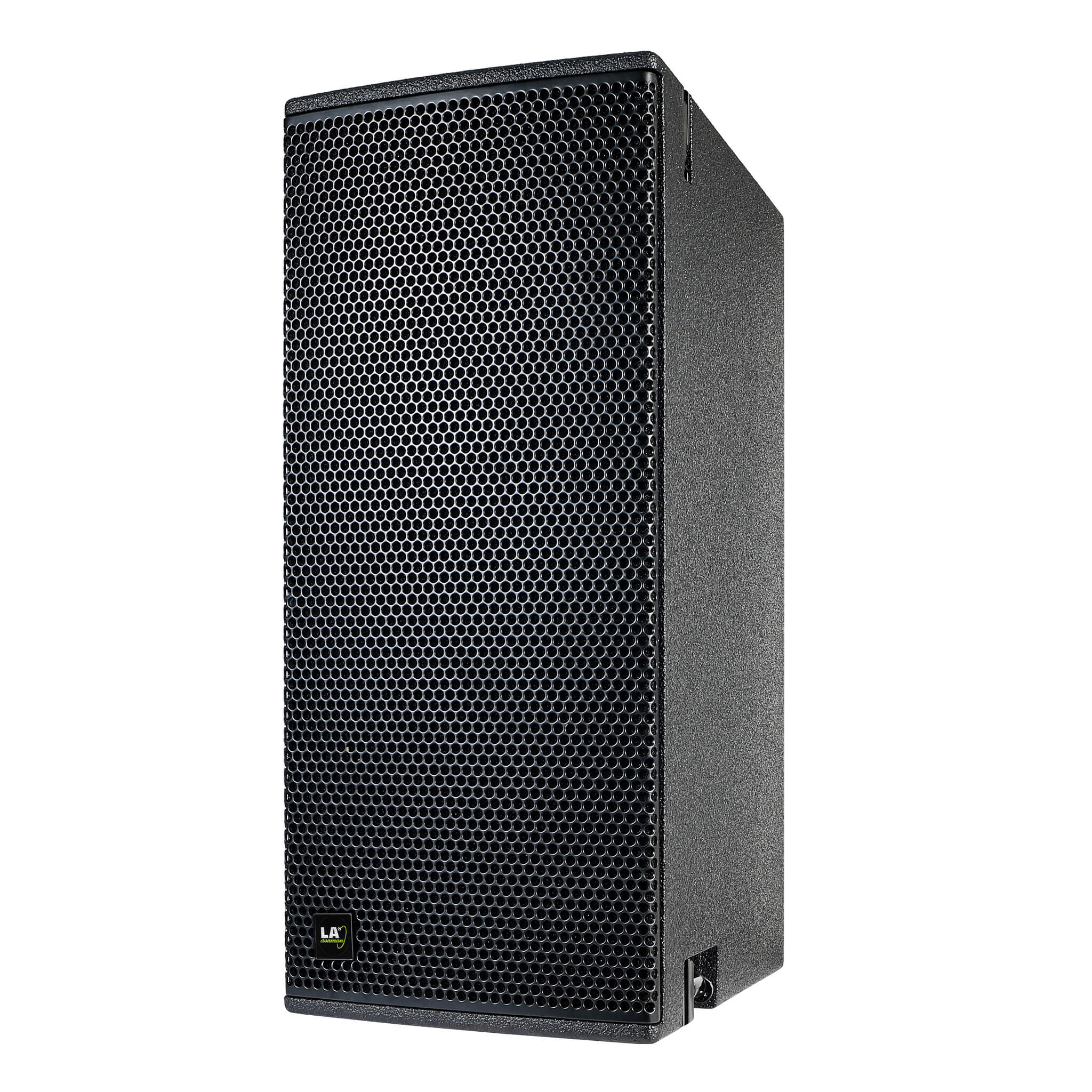

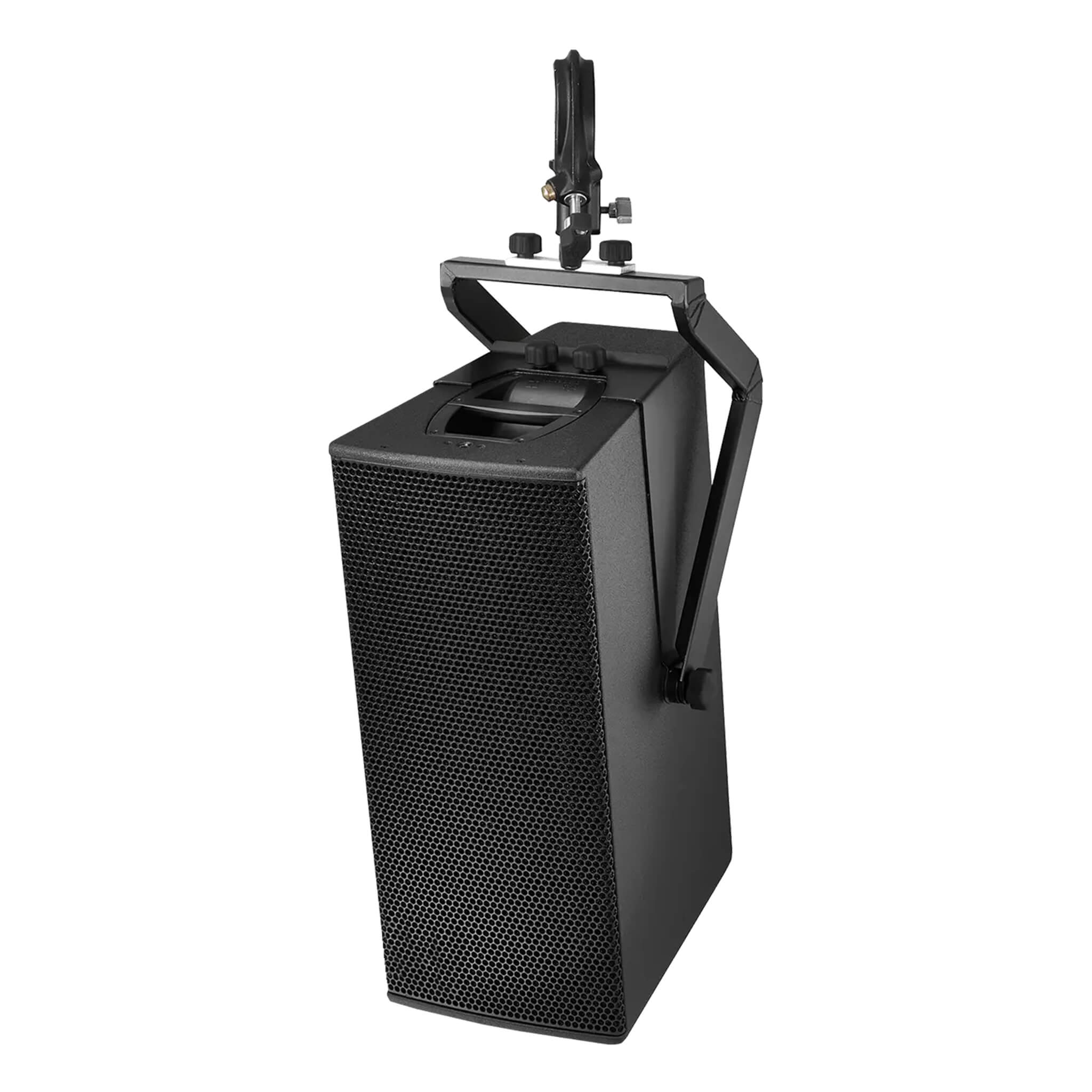

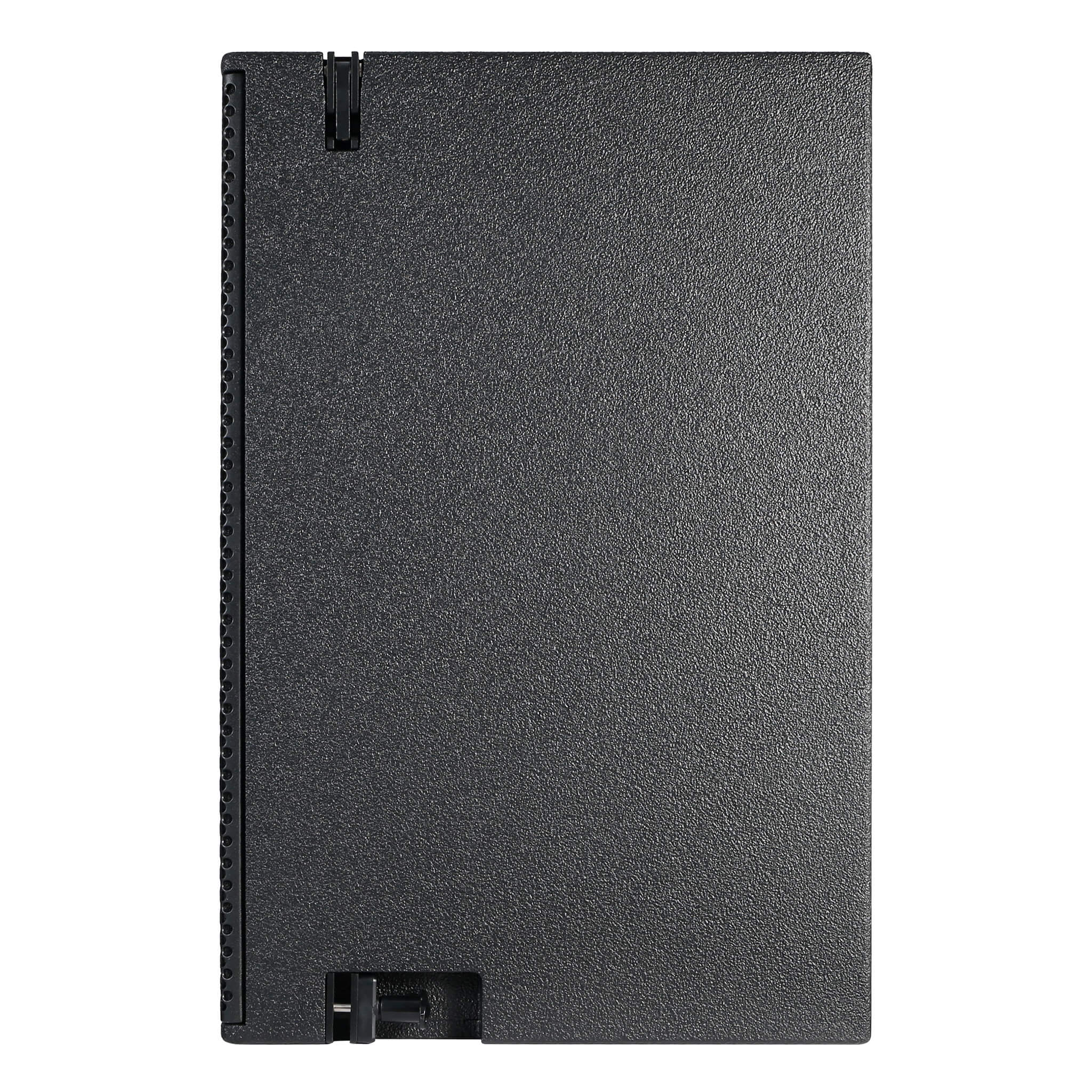

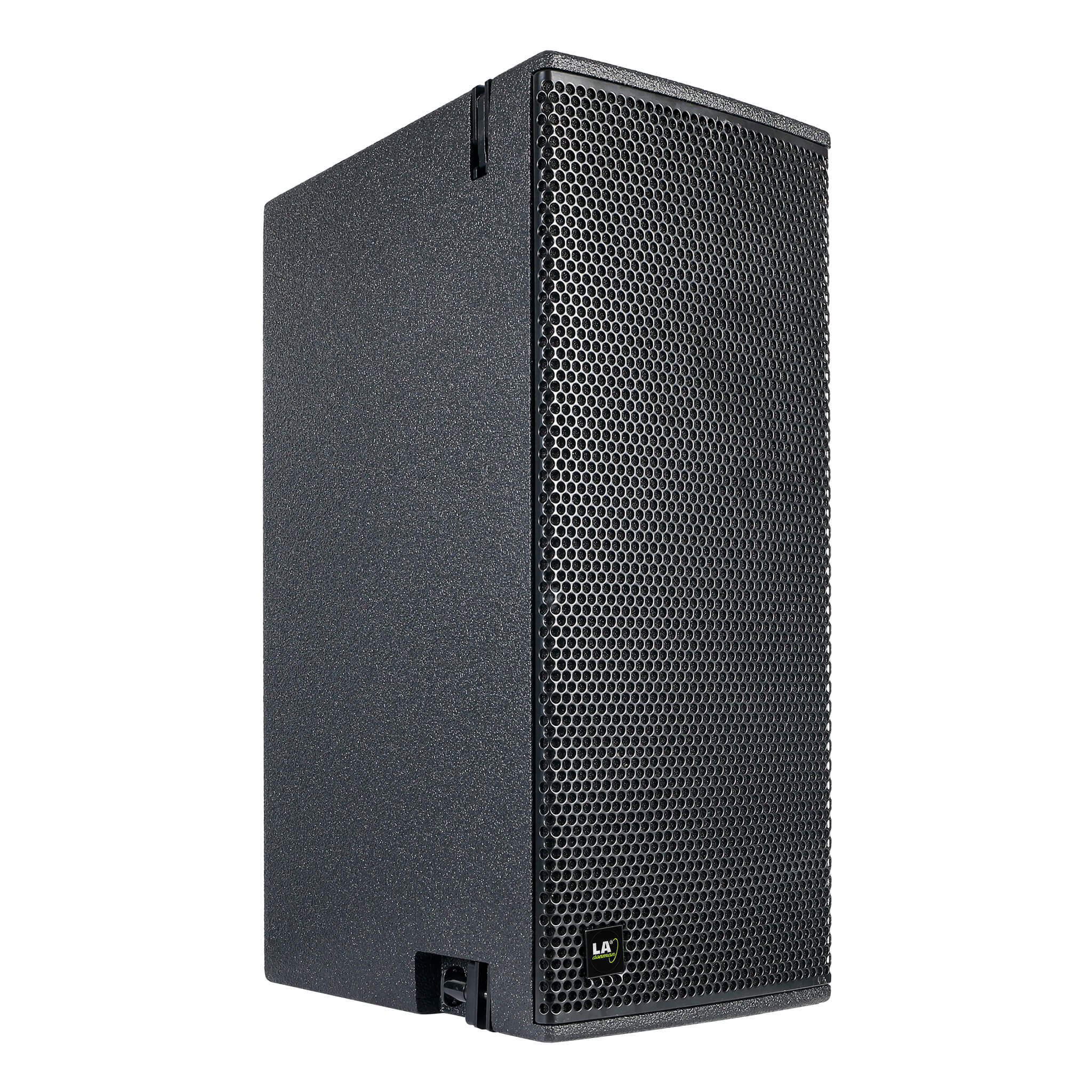

V10P loudspeaker Point sources High performance 3-way passive point source loudspeaker

Sale price

  • Components 2 x 10"/8"/3"
  • Dispersion 110° x 40°
  • SPLmax 139 dB
  • Weight 33 kg / 75 lb

标题

Amplifier

The following specifications of power amplifiers can be used to drive AL90.

Recommended products

System data

Frequency response (-5 dB standard):59 Hz - 18 kHz

Frequency response (-5 dB CUT mode):100 Hz - 18 kHz

Max. sound pressure1 with D20/30D :136 dB withD40/D80/40D:139 dB

Cabinets per amplifier channel:2

Loudspeaker data

Configuration:Highperformance 3-way passive point source loudspeaker

Nominal impedance:8 Ω

Power handling capacity (RMS/peak 10 ms):500/2000 W

Nominal dispersion angle (h x v):110° x 40°

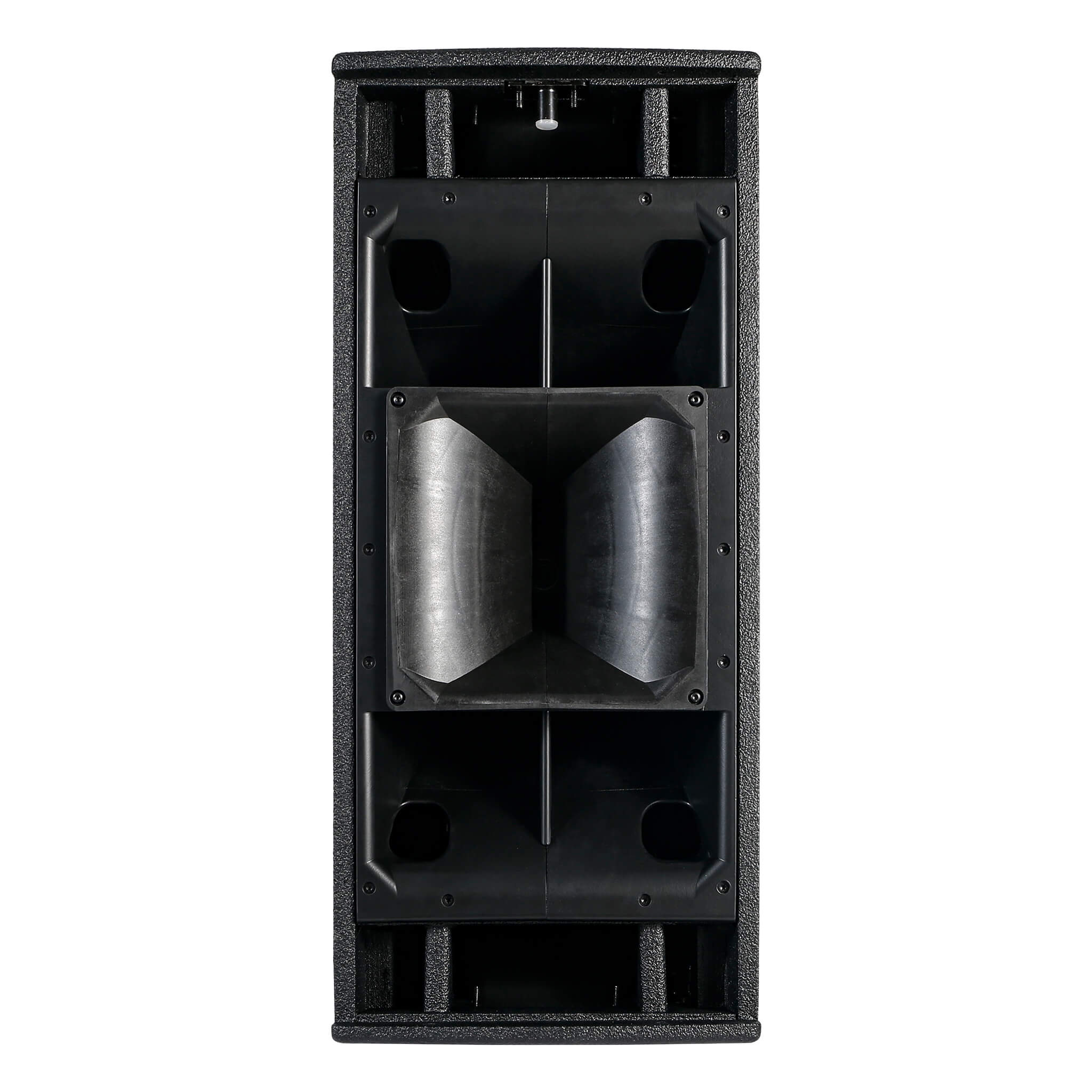

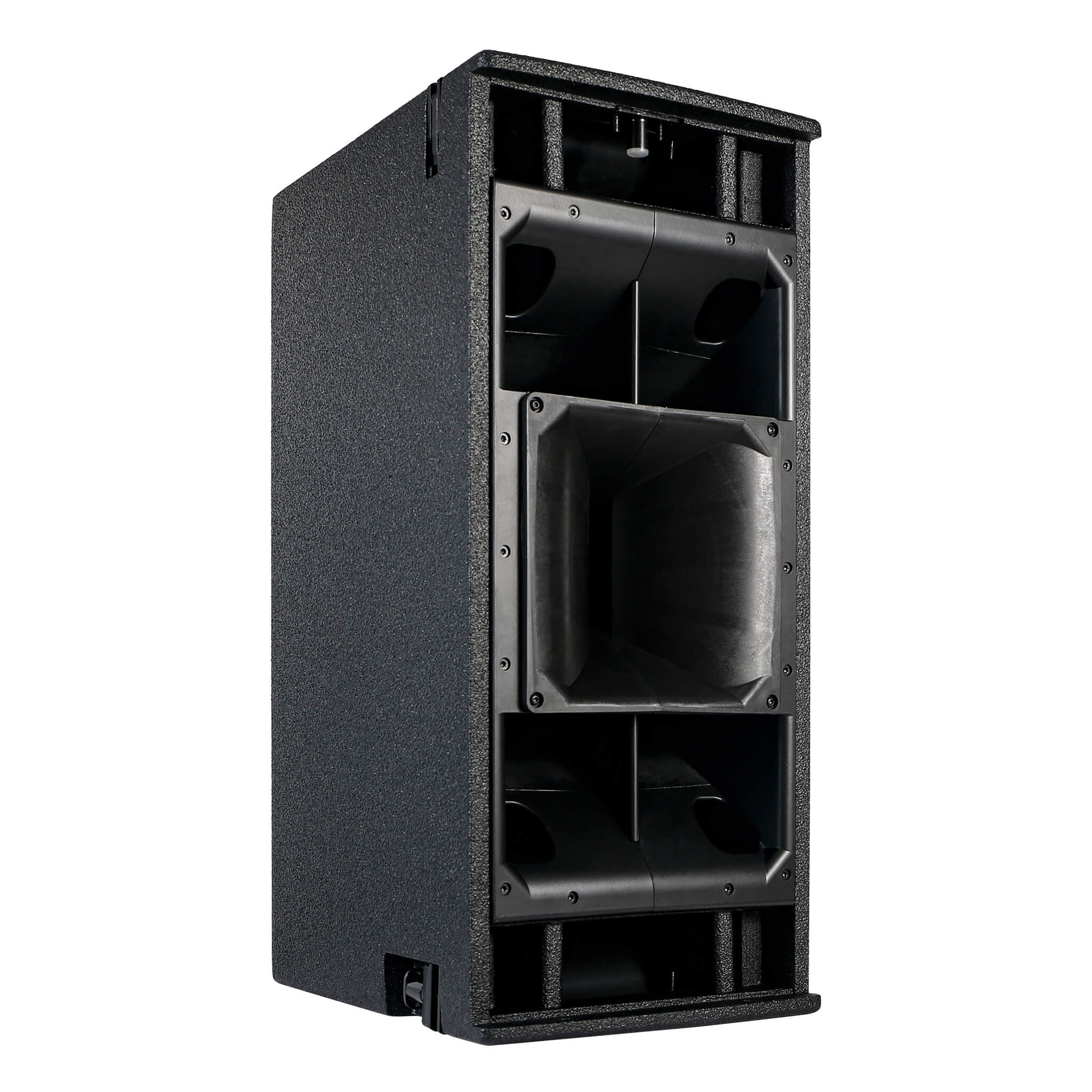

Components:2 x 10" LF driver with neodymium magnet 1 x 8" MF driver with neodymium magnet 1 x 3” exit compression driverPassive crossover network

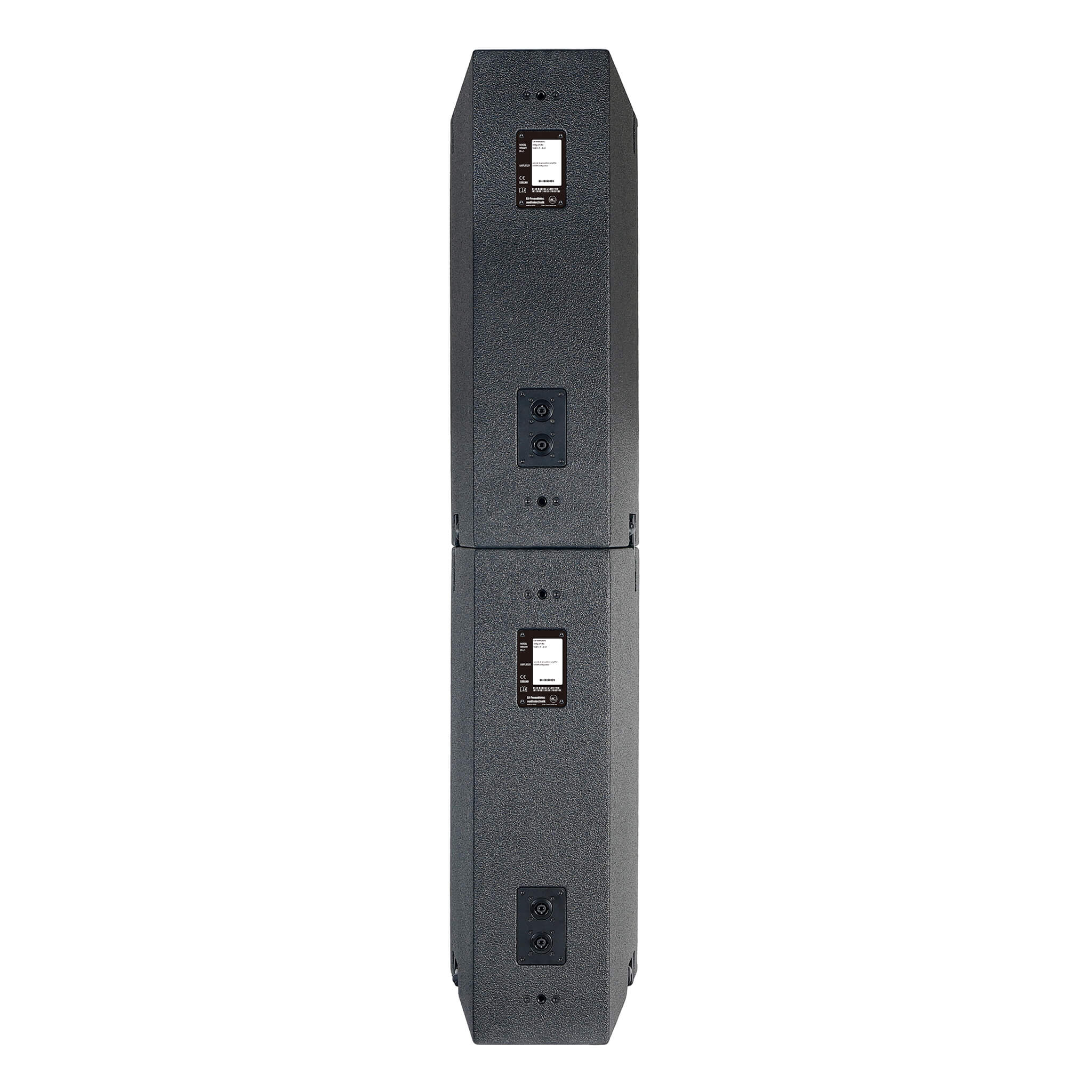

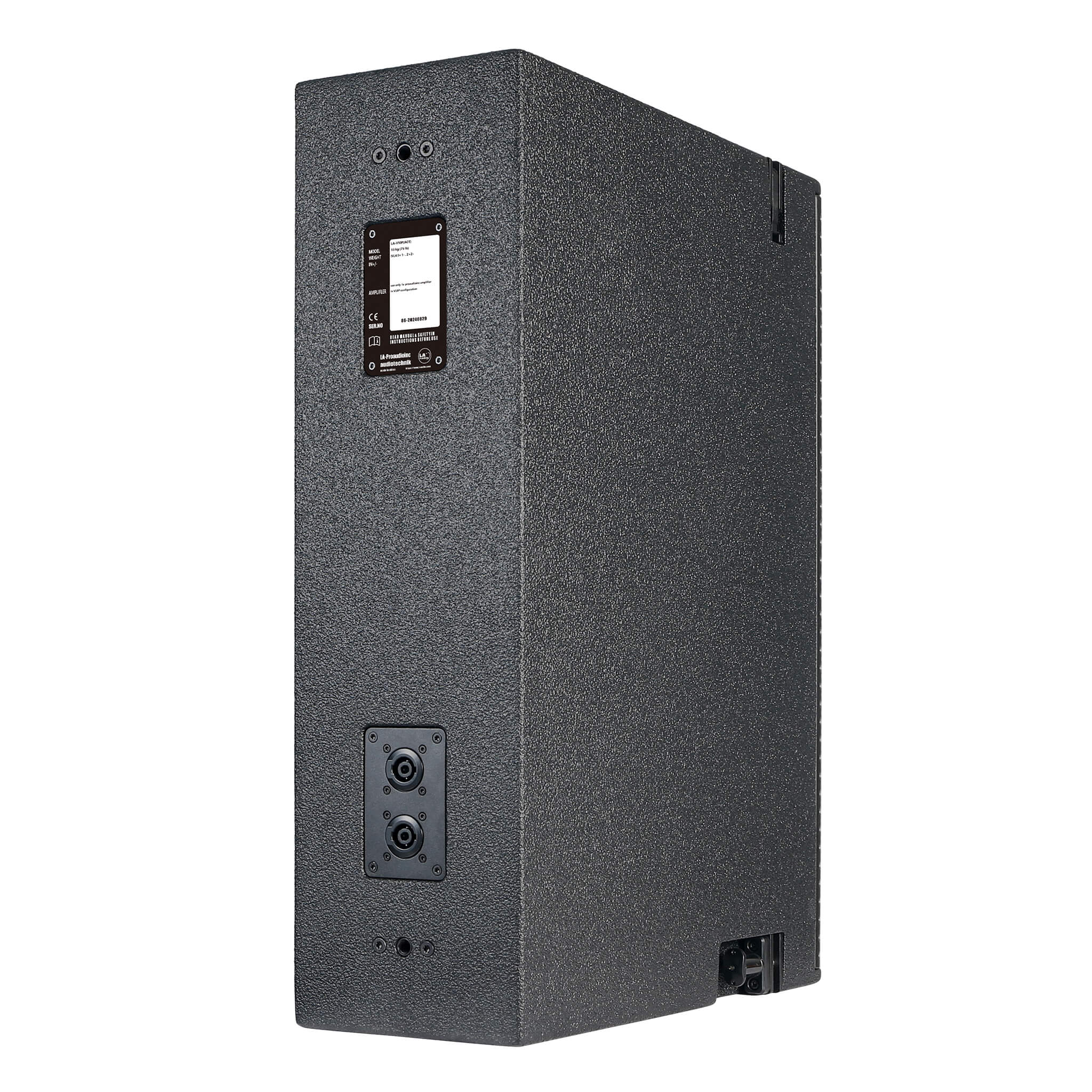

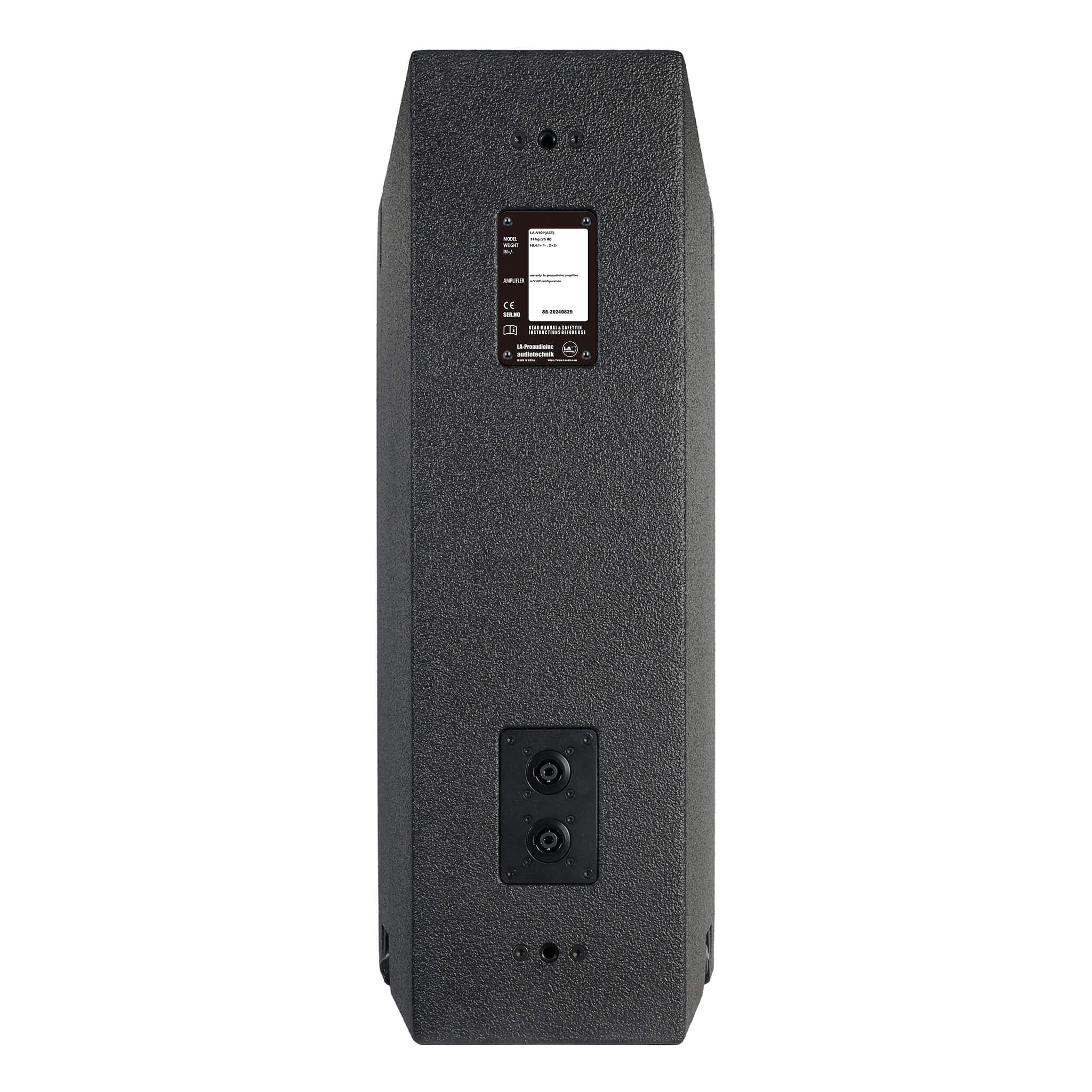

Connections:2 x NLT4 F/M optional 2 x NL4 M

Dimensions / weight

Dimensions (H x W x D):700 x 308 x 466 mm27.5 x 12 x 18.3"

Weight:33 kg75 lb
