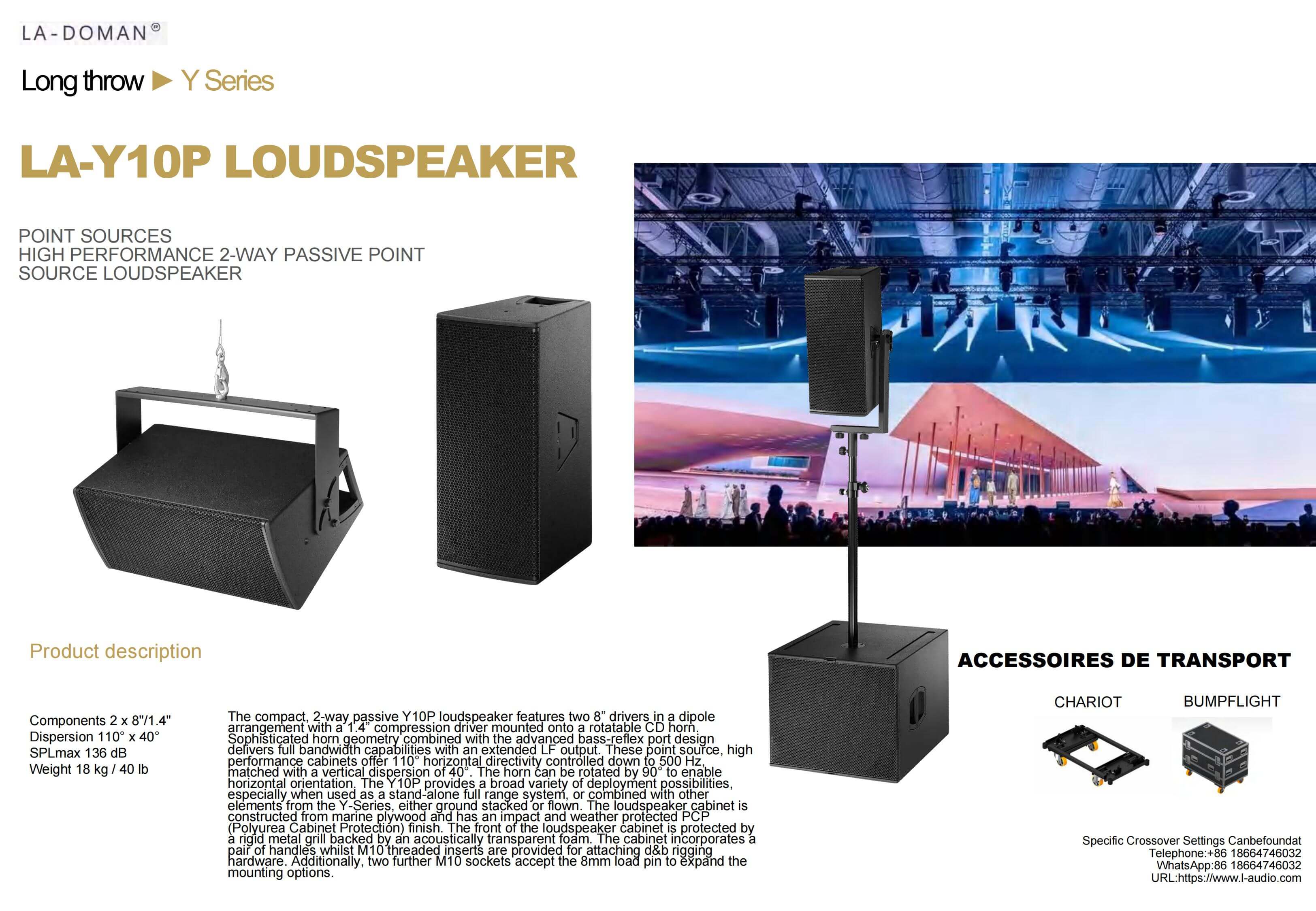

Y10P loudspeaker Point sources High performance 2-way passive point source loudspeaker
- Components 2 x 8"/1.4"
- Dispersion 110° x 40°
- SPLmax 136 dB
- Weight 18 kg / 40 lb
Y10P loudspeaker Point sources High performance 2-way passive point source loudspeaker
Sale price $0.00
Regular price (/)
标题
Amplifier
The following specifications of power amplifiers can be used to drive AL90.
Recommended products
System data
Frequency response (-5 dB standard):59 Hz - 18 kHz
Frequency response (-5 dB CUT mode):118 Hz - 18 kHz
Max. sound pressure1 with 10D:131 dB with D20/30D:134 dB with D40/D80/40D:136 dB
Cabinets per amplifier channel:2
Loudspeaker data
Configuration:High performance 2-way passive point source loudspeaker
Nominal impedance:8 Ω
Power handling capacity (RMS/peak 10 ms):400/1600 W
Nominal dispersion angle (h x v):110° x 40°

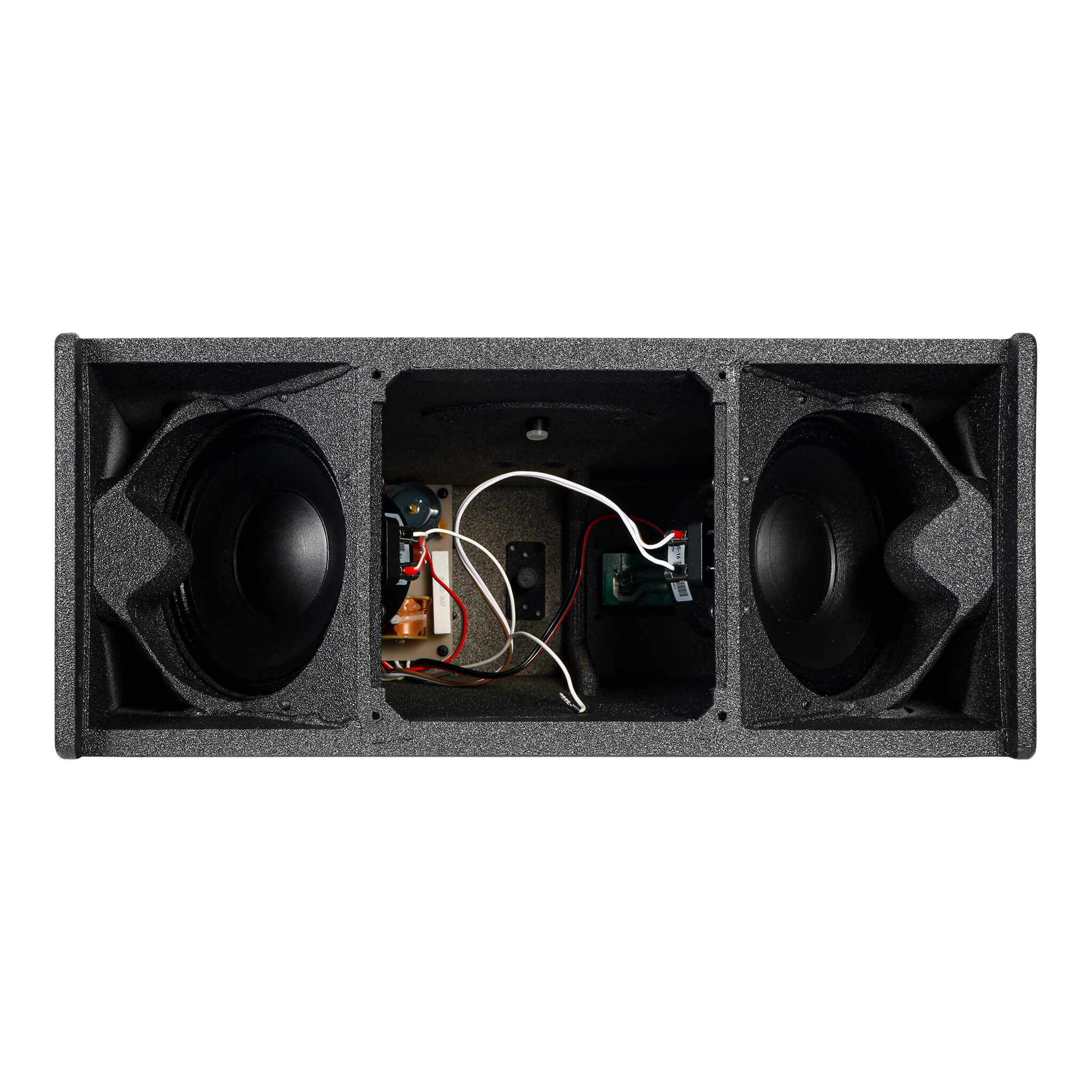

Components:2 x 8" driver with neodymium magnet 1.4" exit compression driver passive crossover network
Connections:2 x NLT4 F/M optional 2 x NL4
Dimensions / weight
Dimensions (H x W x D):580 x 257 x 341 mm 22.8 x 10 x 13.4"
Weight:18 kg 40 lb
